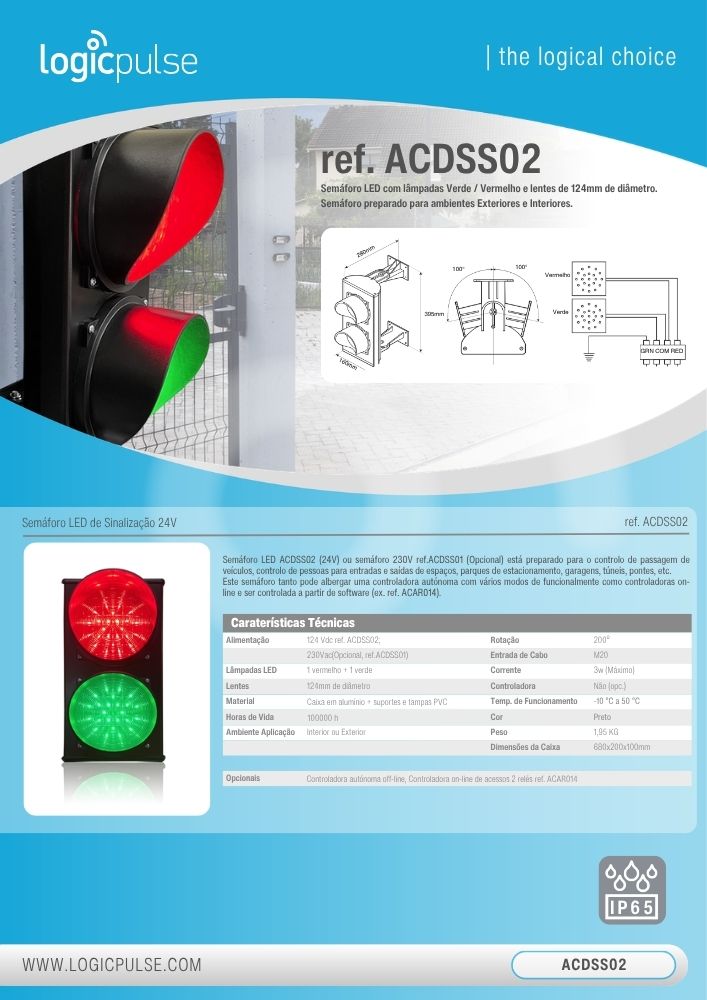

24V LED Signalling Traffic Light
LED traffic light with green/red lamps and 124 mm diameter lenses. Suitable for outdoor and indoor environments.
RefACDSS02
The ACDSS02 LED traffic light (24V), or the 230V traffic light ref. ACDSS01 (optional), is designed for the control of vehicle and pedestrian passage at entrances and exits of spaces, car parks, garages, tunnels, bridges, among others.
This traffic light can integrate an autonomous controller with several operating modes or online controllers, and can also be controlled from software (e.g. ref. ACAR014).
- Power Supply: 124 Vdc ref. ACDSS02; 230Vac(Optional, ref.ACDSS01)
- LED Lamps: 1 red + 1 green
- Lenses: 124mm diameter
- Material: Aluminium housing + PVC brackets and covers
- Life Hours: 100000 h
- Application Environment: Indoor or Outdoor
- Rotation: 200°
- Cable Entry: M20
- Current: 3w (Maximum)
- Controller: No (opt.)
- Operating Temp.: -10 °C to 50 °C
- Colour: Black
- Weight: 1.95 KG
- Box Dimensions: 680x200x100mm
- Options: Autonomous off-line controller, On-line access controller with 2 relays ref. ACAR014
