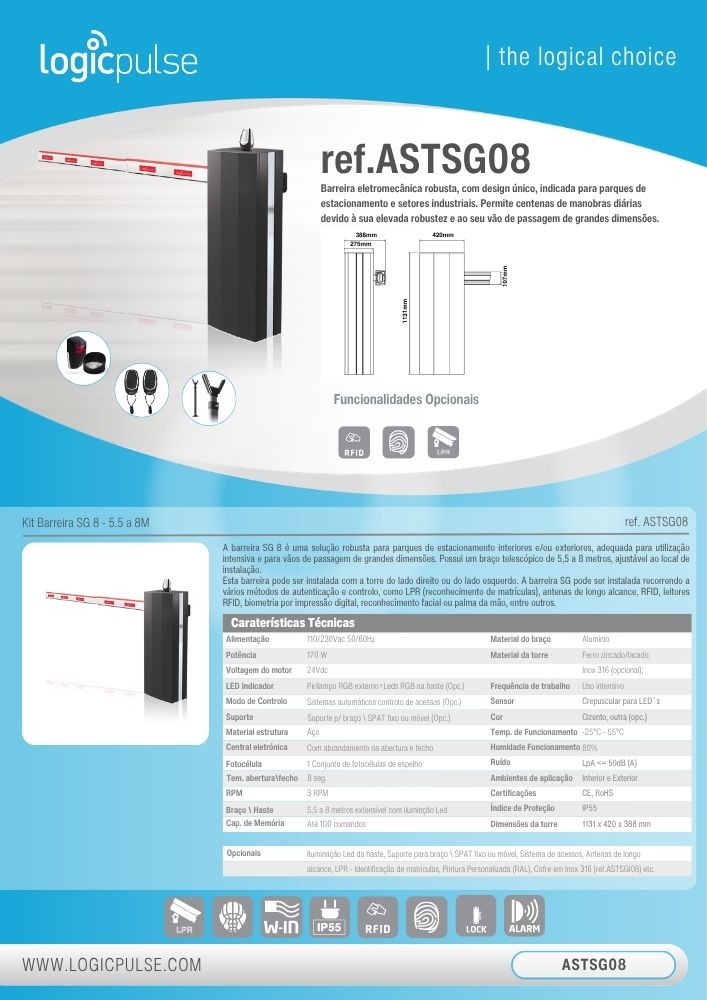

SG 8 Barrier Kit - 5.5 to 8M
Robust electromechanical barrier with a unique design, suitable for car parks and industrial sectors. It allows hundreds of daily manoeuvres due to its high robustness and large passage width.
RefASTSG08
The SG 8 barrier is a robust solution for indoor and/or outdoor car parks, suitable for intensive use and large passage widths. It has a telescopic arm from 5.5 to 8 metres, adjustable to the installation site.
This barrier can be installed with the tower on the right or left side. The SG barrier can be installed using several authentication and control methods, such as LPR (licence plate recognition), long-range antennas, RFID, RFID readers, biometrics with fingerprint, facial or palm recognition, among others.
- Power Supply: 110/230Vac 50/60Hz
- Power: 170 W
- Motor Voltage: 24Vdc
- LED Indicator: External RGB flashing light + RGB LEDs on the arm (Optional)
- Control Mode: Automatic access control systems (Optional)
- Support: Arm support \ fixed or mobile SPAT (Optional)
- Structure Material: Steel
- Electronic Control Unit: With slowdown on opening and closing
- Photocell: 1 set of reflector photocells
- Opening/Closing Time: 8 sec.
- RPM: 3 RPM
- Arm \ Boom: 5.5 to 8 metres extendable with LED lighting
- Memory Capacity: Up to 100 commands
- Arm Material: Aluminium
- Tower Material: Galvanised/coated iron; 316 stainless steel (optional);
- Duty Cycle: Intensive use
- Sensor: Twilight sensor for LEDs
- Colour: Grey, other colour (optional)
- Operating Temperature: -25°C - 55°C
- Operating Humidity: 80%
- Noise: LpA <= 50dB (A)
- Application Environments: Indoor and Outdoor
- Certifications: CE, RoHS
- Protection Rating: IP55
- Tower Dimensions: 1131 x 420 x 388 mm
- Optional: LED lighting on the arm, Arm support \ fixed or mobile SPAT, Access system, Long-range antennas, LPR - Licence plate identification, Custom painting (RAL), 316 stainless steel safe box (ref. ASTSGI08), etc.
