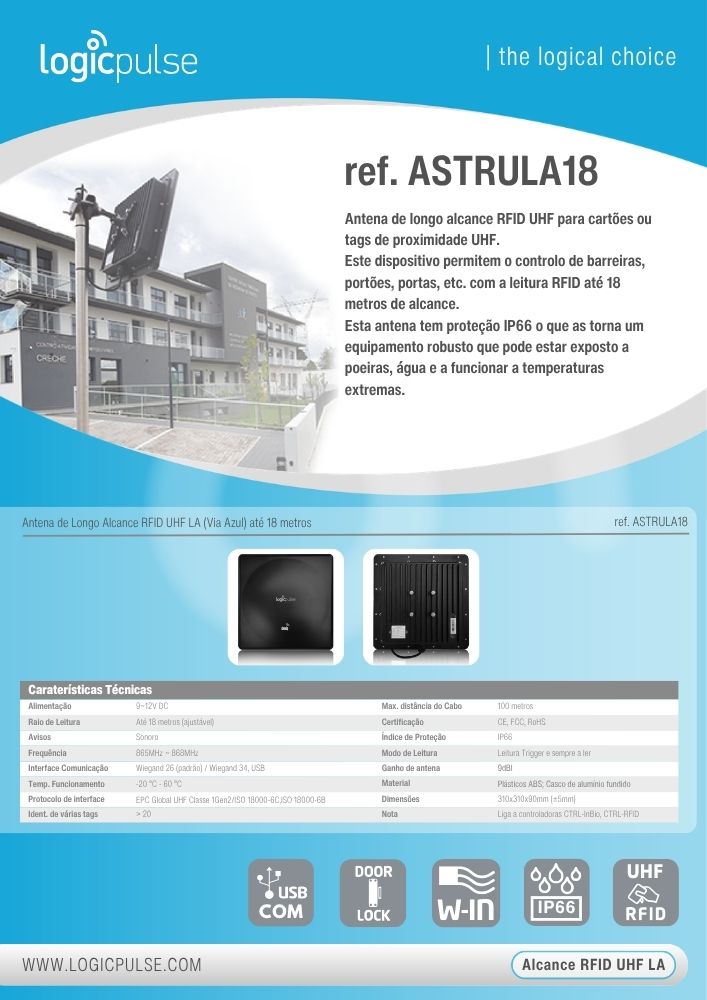

Long-Range UHF RFID LA Antenna (Via Azul) up to 18 metres
Long-range UHF RFID antenna for UHF proximity cards or tags. This device allows the control of barriers, gates, doors, etc. with RFID reading up to 18 metres of range. This antenna has IP66 protection, making it robust equipment that can be exposed to dust and water, and operate in extreme temperatures.
RefASTRULA18
Long-range UHF RFID antenna for UHF proximity cards or tags.
This device allows the control of barriers, gates, doors, etc. with RFID reading up to 18 metres of range.
This antenna has IP66 protection, making it robust equipment that can be exposed to dust, water and operate in extreme temperatures.
- Power Supply: 9~12V DC
- Reading Range: Up to 18 metres (adjustable)
- Alerts: Sound
- Frequency: 865MHz ~ 868MHz
- Communication Interface: Wiegand 26 (standard) / Wiegand 34, USB
- Operating Temperature: -20 °C - 60 °C
- Interface Protocol: EPC Global UHF Class 1Gen2/ISO 18000-6C, ISO 18000-6B
- Multiple Tag Identification: > 20
- Maximum Cable Distance: 100 metres
- Certification: CE, FCC, RoHS
- Protection Rating: IP66
- Reading Mode: Trigger reading and continuous reading
- Antenna Gain: 9dBI
- Material: ABS plastic; die-cast aluminium casing
- Dimensions: 310x310x90mm (±5mm)
- Note: Connects to CTRL-InBio, CTRL-RFID controllers
