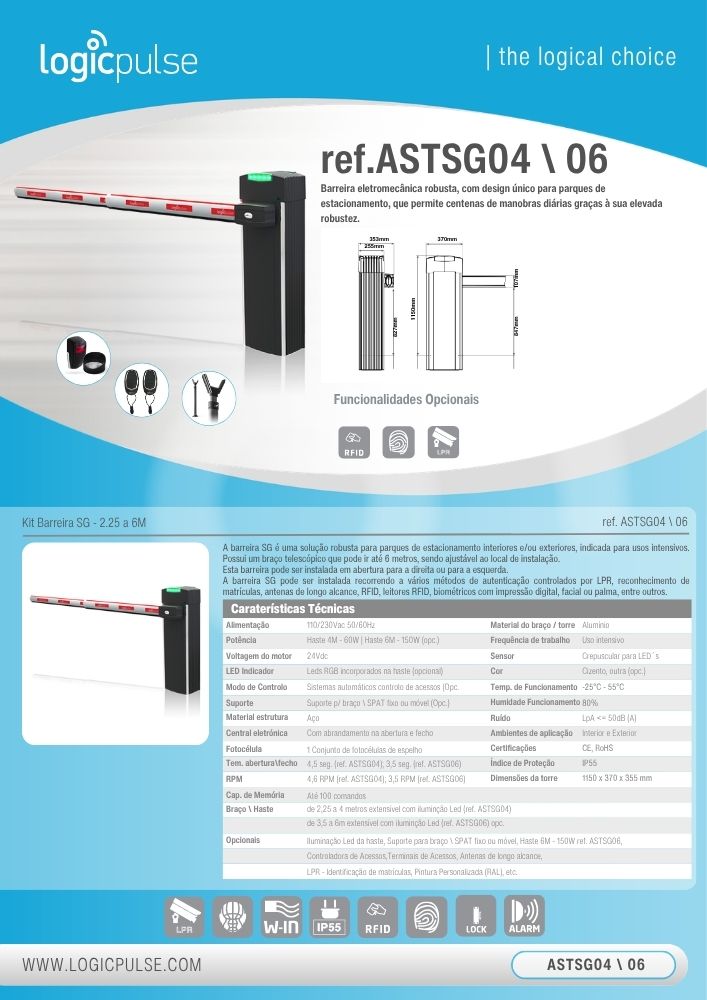

SG Barrier Kit – 2.25 to 6 M
Robust electromechanical barrier, with a unique design for car parks, allowing hundreds of daily manoeuvres thanks to its high robustness.
RefASTSG04
The SG barrier is a robust solution for indoor and/or outdoor car parks, suitable for intensive use. It has a telescopic boom that can reach up to 6 metres and is adjustable to the installation site.
This barrier can be installed with right-hand or left-hand opening.
The SG barrier can be installed using several authentication methods controlled by LPR, licence plate recognition, long-range antennas, RFID, RFID readers, biometric readers with fingerprint, facial or palm recognition, among others.
- Power supply: 110/230Vac 50/60Hz
- Power: 4M boom - 60W | 6M boom - 150W (opt.)
- Motor voltage: 24Vdc
- Indicator LED: RGB LEDs built into the boom (optional)
- Control mode: Automatic access control systems (opt.)
- Support: Boom support \ fixed or mobile SPAT (opt.)
- Structural material: Steel
- Electronic control unit: With slowdown on opening and closing
- Photocell: 1 set of reflector photocells
- Opening/closing time: 4.5 sec. (ref. ASTSG04); 3.5 sec. (ref. ASTSG06)
- RPM: 4.6 RPM (ref. ASTSG04); 3.5 RPM (ref. ASTSG06)
- Memory capacity: Up to 100 commands
- Boom \ Bar: from 2.25 to 4 metres, extendable with LED lighting (ref. ASTSG04)
- Boom \ Bar: from 3.5 to 6m, extendable with LED lighting (ref. ASTSG06) opt.
- Boom / tower material: Aluminium
- Operating frequency: Intensive use
- Sensor: Twilight sensor for LEDs
- Colour: Grey, other (opt.)
- Operating temperature: -25°C - 55°C
- Operating humidity: 80%
- Noise: LpA <= 50dB (A)
- Application environments: Indoor and Outdoor
- Certifications: CE, RoHS
- Protection rating: IP55
- Tower dimensions: 1150 x 370 x 355 mm
- Options: Boom LED lighting, Boom support \ fixed or mobile SPAT, 6M boom - 150W ref. ASTSG06, Access controller, Access terminals, Long-range antennas, LPR - Licence plate identification, Custom paintwork (RAL), etc.
