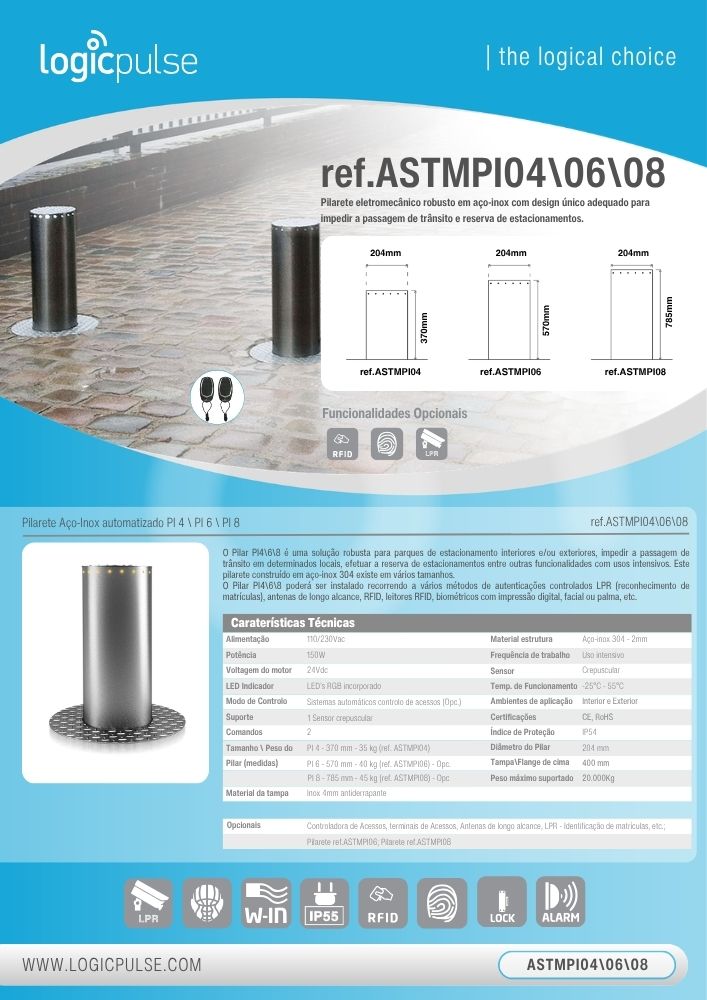

Automated Stainless Steel Bollard PI 4 / PI 6 / PI 8
Robust electromechanical stainless steel bollard with a unique design, suitable for preventing vehicle passage and reserving parking spaces.
RefASTMPI04
The PI4/6/8 Bollard is a robust solution for indoor and/or outdoor car parks, preventing vehicle passage in specific areas, reserving parking spaces, among other intensive-use functionalities. This bollard is made of 304 stainless steel and is available in several sizes.
The PI4/6/8 Bollard can be installed using several authentication and control methods, such as LPR (licence plate recognition), long-range antennas, RFID, RFID readers, biometric devices with fingerprint, facial or palm recognition, etc.
- Power Supply: 110/230Vac
- Power: 150W
- Motor Voltage: 24Vdc
- LED Indicator: Built-in RGB LEDs
- Control Mode: Automatic access control systems (Optional)
- Support: 1 twilight sensor
- Commands: 2
- Size / Weight of the Bollard: PI 4 - 370 mm - 35 kg (ref. ASTMPI04)
- Size / Weight of the Bollard: PI 6 - 570 mm - 40 kg (ref. ASTMPI06) - Optional
- Size / Weight of the Bollard: PI 8 - 785 mm - 45 kg (ref. ASTMPI08) - Optional
- Cover Material: 4 mm non-slip stainless steel
- Structure Material: 304 stainless steel - 2 mm
- Duty Cycle: Intensive use
- Sensor: Twilight
- Operating Temperature: -25°C - 55°C
- Application Environments: Indoor and Outdoor
- Certifications: CE, RoHS
- Protection Rating: IP54
- Bollard Diameter: 204 mm
- Top Plate: 400 mm
- Maximum Supported Weight: 20.000Kg
- Optional: Access controller, access terminals, long-range antennas, LPR - licence plate identification, etc.; Bollard ref. ASTMPI06; Bollard ref. ASTMPI08
