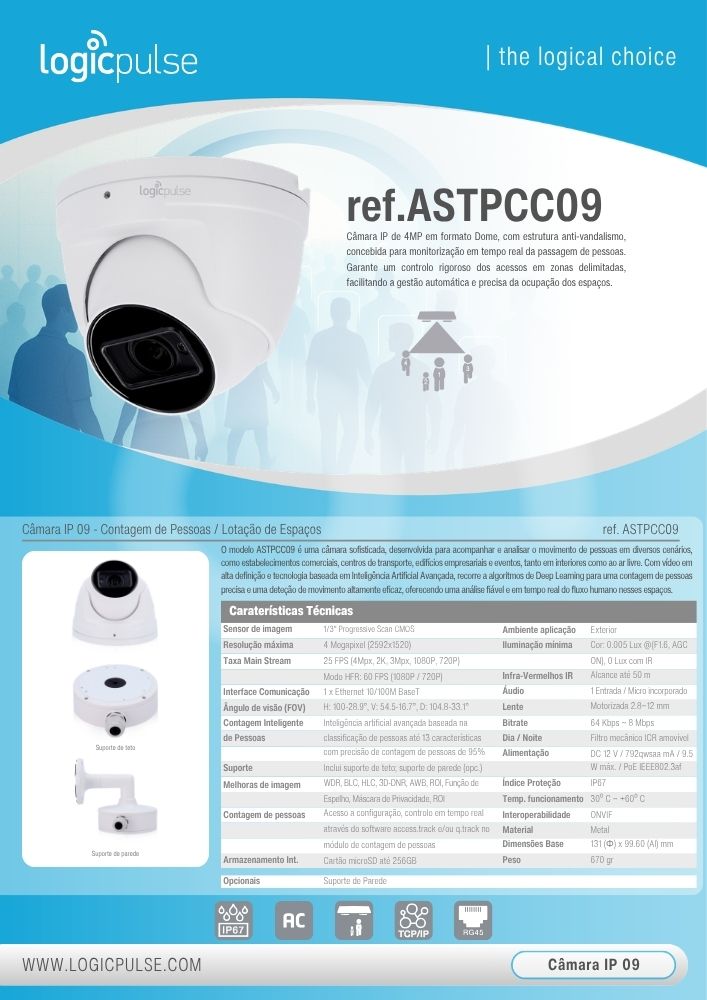

IP Camera 09 - People Counting / Space Occupancy
4MP IP camera in Dome format, with anti-vandalism structure, designed for real-time monitoring of people movement. Ensures rigorous access control in delimited areas, facilitating automatic and accurate management of space occupancy.
RefASTPCC09
The ASTPCC09 model is a sophisticated camera, developed to monitor and analyse the movement of people in various scenarios, such as commercial establishments, transport centres, business buildings and events, both indoors and outdoors. With high-definition video and technology based on Advanced Artificial Intelligence, it uses Deep Learning algorithms for accurate people counting and highly effective motion detection, offering reliable real-time analysis of human flow in these spaces.
- Image sensor: 1/3" Progressive Scan CMOS
- Maximum resolution: 4 Megapixel (2592x1520)
- Main Stream rate: 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P)
- Communication interface: 1 x Ethernet 10/100M BaseT
- Viewing angle (FOV): H: 100-28.9°, V: 54.5-16.7°, D: 104.8-33.1°
- Intelligent people counting: Advanced artificial intelligence based on the classification of people using up to 13 characteristics with 95% people counting accuracy
- Mount: Includes ceiling mount; wall mount (opt.)
- Image enhancements: WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI
- People counting: Access to configuration, real-time control through access.track and/or q.track software in the people counting module
- Internal storage: microSD card up to 256GB
- Application environment: Outdoor
- Minimum illumination: Colour: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR
- IR infrared: Range up to 50 m
- Audio: 1 Input / Built-in microphone
- Lens: Motorised 2.8~12 mm
- Bitrate: 64 Kbps ~ 8 Mbps
- Day / Night: Removable mechanical ICR filter
- Power supply: DC 12 V / 792mA max. / 9.5 W max. / PoE IEEE802.3af
- Protection rating: IP67
- Operating temperature: -30° C ~ +60° C
- Interoperability: ONVIF
- Material: Metal
- Base dimensions: 131 (Φ) x 99.60 (H) mm
- Weight: 670 gr
- Optional: Wall mount
