IP Camera 08 - People Counting / Space Occupancy
4MP LightHunter IP camera with Deep Learning, in vandal-resistant Dome format, ideal for real-time people counting. Enables effective control of entries and exits in specific access or circulation areas, helping to manage space occupancy accurately and automatically.

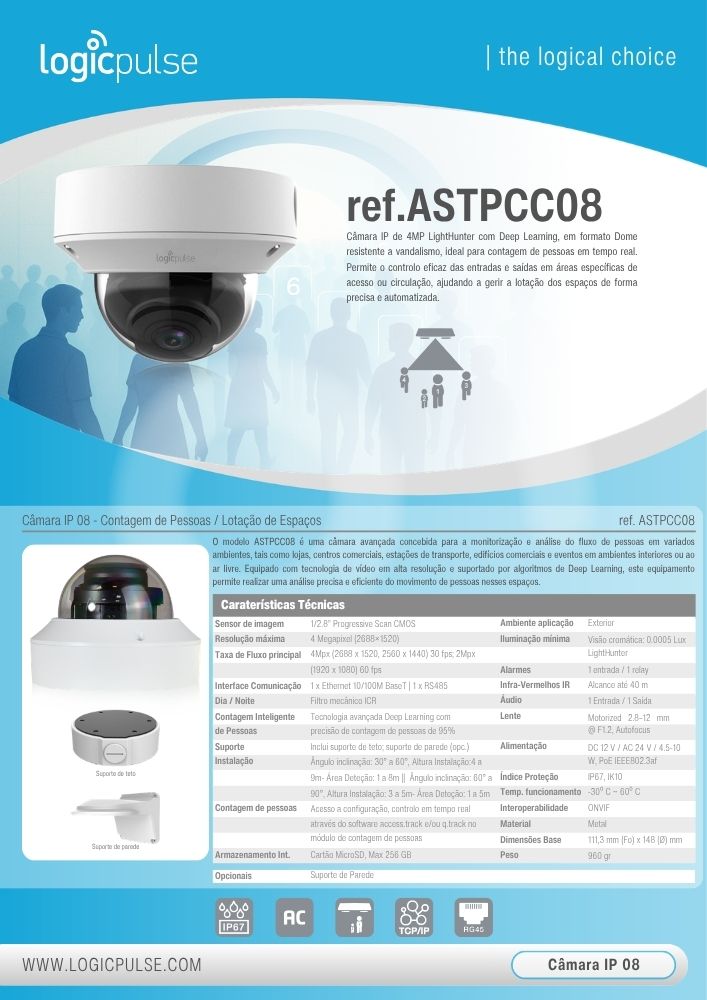

RefASTPCC08
The ASTPCC08 model is an advanced camera designed for monitoring and analysing people flow in various environments, such as shops, shopping centres, transport stations, commercial buildings and events in indoor or outdoor environments. Equipped with high-resolution video technology and supported by Deep Learning algorithms, this equipment enables accurate and efficient analysis of people movement in these spaces.
- Image sensor: 1/2.8" Progressive Scan CMOS
- Maximum resolution: 4 Megapixel (2688 x 1520)
- Main stream rate: 4Mpx (2688 x 1520, 2560 x 1440) 30 fps; 2Mpx (1920 x 1080) 60 fps
- Communication interface: 1 x Ethernet 10/100M BaseT | 1 x RS485
- Day / Night: ICR mechanical filter
- Intelligent People Counting: Advanced Deep Learning technology with 95% people counting accuracy
- Mount: Includes ceiling mount; wall mount (opt.)
- Installation: Tilt angle: 30° to 60°; Installation height: 4 to 9m; Detection area: 1 to 8m || Tilt angle: 60° to 90°; Installation height: 3 to 5m; Detection area: 1 to 5m
- People counting: Access to configuration, real-time control through access.track and/or q.track software in the people counting module
- Internal storage: MicroSD card, Max 256 GB
- Application environment: Outdoor
- Minimum illumination: Colour vision: 0.0005 Lux LightHunter
- Alarms: 1 input / 1 relay
- IR Infrared: Range up to 40 m
- Audio: 1 Input / 1 Output
- Lens: Motorised 2.8~12 mm @ F1.2, Autofocus
- Power supply: DC 12 V / AC 24 V / 1.4-5.10 W, PoE IEEE802.3af
- Protection rating: IP67, IK10
- Operating temperature: -30° C ~ 60° C
- Interoperability: ONVIF
- Material: Metal
- Base dimensions: 111,3 mm (Fo) x 148 (P) mm
- Weight: 960 gr
- Optional: Wall Mount
