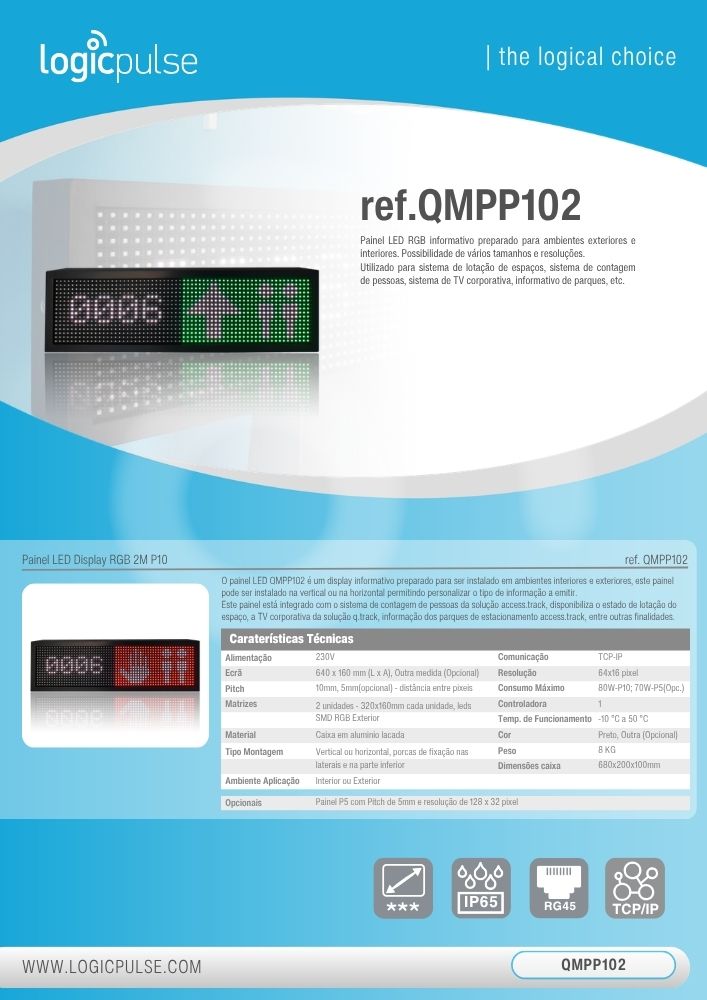

RGB 2M P10 LED Display Panel
Informative RGB LED panel prepared for outdoor and indoor environments. Possibility of various sizes and resolutions. Used for space occupancy systems, people counting systems, corporate TV systems, car park information systems, etc.
RefQMPP102
The QMPP102 LED panel is an informative display prepared to be installed in indoor and outdoor environments. This panel can be installed vertically or horizontally, allowing the type of information to be displayed to be customised.
This panel is integrated with the people counting system of the access.track solution, displays the occupancy status of the space, the corporate TV of the q.track solution, information from access.track car parks, among other purposes.
- Power supply: 230V
- Screen: 640 x 160 mm (W x H), Other size (Optional)
- Pitch: 10mm, 5mm (optional) - distance between pixels
- Matrices: 2 units - 320x160mm each unit, SMD RGB LEDs for outdoor use
- Material: Lacquered aluminium box
- Mounting type: Vertical or horizontal, fixing nuts on the sides and on the bottom
- Application environment: Indoor or Outdoor
- Communication: TCP-IP
- Resolution: 64x16 pixel
- Maximum consumption: 80W-P10; 70W-P5(Optional)
- Controller: 1
- Operating temperature: -10 ºC to 50 ºC
- Colour: Black, Other (Optional)
- Weight: 8 KG
- Box dimensions: 680x200x100mm
- Optional: P5 panel with 5mm pitch and 128 x 32 pixel resolution
