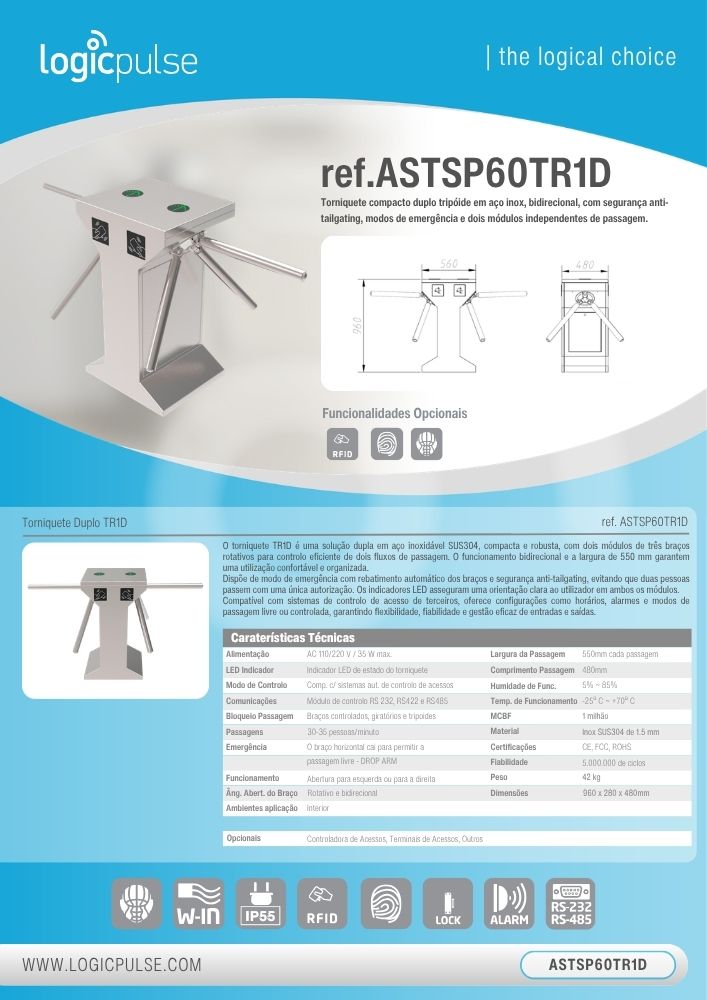

Double Turnstile TR1D
Compact double tripod turnstile in stainless steel, bi-directional, with anti-tailgating security, emergency modes and two independent passage modules.
RefASTSP60TR1D
The TR1D turnstile is a double solution in SUS304 stainless steel, compact and robust, with two modules of three rotating arms for efficient control of two passage flows. The bi-directional operation and 550 mm width ensure comfortable and organised use.
It features an emergency mode with automatic arm drop and anti-tailgating security, preventing two people from passing with a single authorisation. The LED indicators ensure clear user guidance on both modules.
Compatible with third-party access control systems, it offers configurations such as schedules, alarms and free or controlled passage modes, ensuring flexibility, reliability and effective management of entries and exits.
- Power Supply: AC 110/220 V / 35 W max.
- LED Indicator: Turnstile status LED indicator
- Control Mode: Compatible with automatic access control systems
- Communications: RS232, RS422 and RS485 control module
- Passage Blocking: Controlled, rotating and tripod arms
- Passages: 30-35 people/minute
- Emergency: The horizontal arm drops to allow free passage - DROP ARM
- Operation: Opening to the left or to the right
- Arm Opening Angle: Rotating and bi-directional
- Application Environments: Indoor
- Passage Width: 550mm each passage
- Passage Length: 480mm
- Operating Humidity: 5% ~ 85%
- Operating Temperature: -25 ºC ~ +70 ºC
- MCBF: 1 million
- Material: 1.5 mm SUS304 stainless steel
- Certifications: CE, FCC, RoHS
- Reliability: 5,000,000 cycles
- Weight: 42 kg
- Dimensions: 960 x 280 x 480mm
- Optional: Access Controller, Access Terminals, Others
