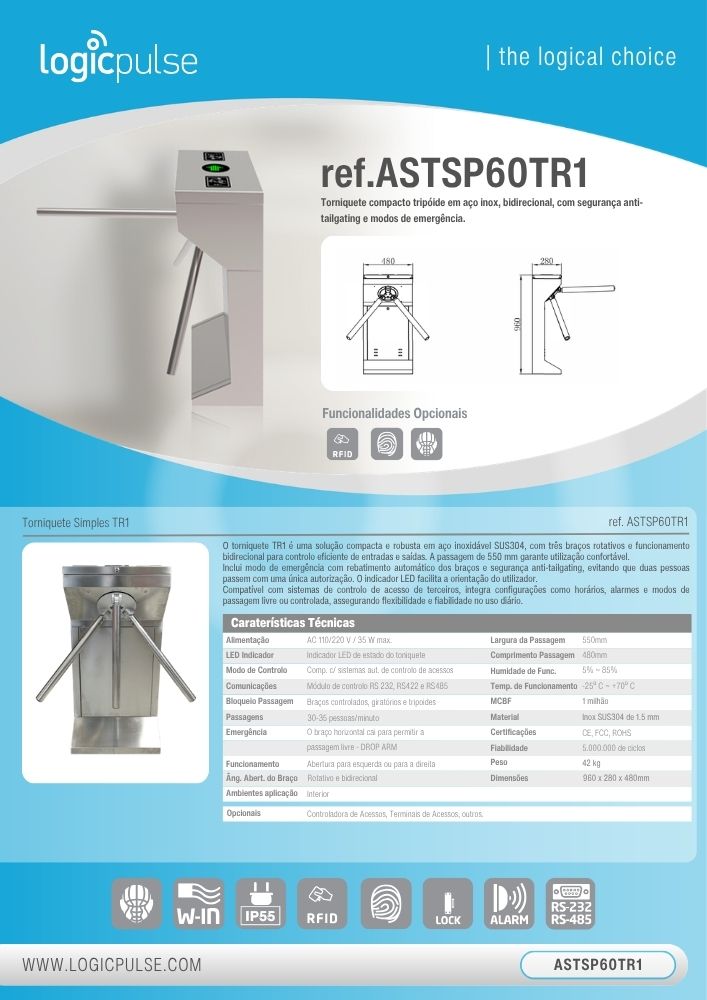

Simple Turnstile TR1
Compact tripod turnstile in stainless steel, bi-directional, with anti-tailgating security and emergency modes.
RefASTSP60TR1
The TR1 turnstile is a compact and robust solution in SUS304 stainless steel, with three rotating arms and bi-directional operation for efficient control of entries and exits. The 550 mm passage width ensures comfortable use.
It includes an emergency mode with automatic arm drop and anti-tailgating security, preventing two people from passing with a single authorisation. The LED indicator makes user guidance easier.
Compatible with third-party access control systems, it integrates configurations such as schedules, alarms and free or controlled passage modes, ensuring flexibility and reliability in daily use.
- Power Supply: AC 110/220 V / 35 W max.
- LED Indicator: Turnstile status LED indicator
- Control Mode: Compatible with automatic access control systems
- Communications: RS232, RS422 and RS485 control module
- Passage Blocking: Controlled, rotating and tripod arms
- Passages: 30-35 people/minute
- Emergency: The horizontal arm drops to allow free passage - DROP ARM
- Operation: Opening to the left or to the right
- Arm Opening Angle: Rotating and bi-directional
- Application Environments: Indoor
- Passage Width: 550mm
- Passage Length: 480mm
- Operating Humidity: 5% ~ 85%
- Operating Temperature: -25 ºC ~ +70 ºC
- MCBF: 1 million
- Material: 1.5 mm SUS304 stainless steel
- Certifications: CE, FCC, RoHS
- Reliability: 5,000,000 cycles
- Weight: 42 kg
- Dimensions: 980 x 280 x 480mm
- Optional: Access Controller, Access Terminals, others.
