Hardware
Turnstiles

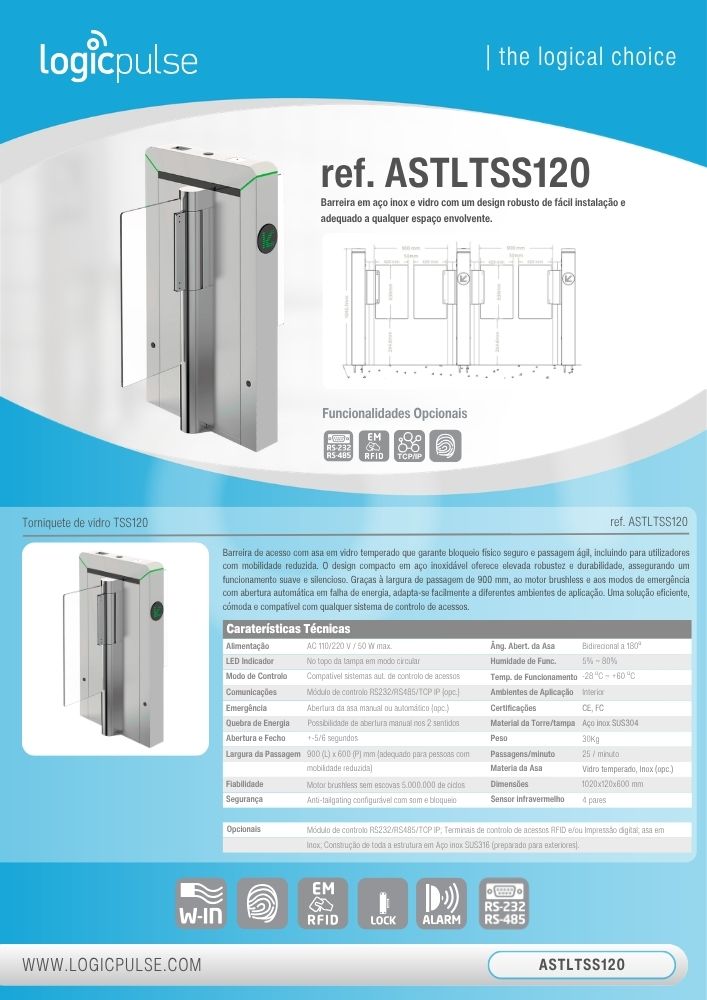

Glass turnstile TSS120
Stainless steel and glass barrier with a robust design, easy to install and suitable for any surrounding space.
RefASTLTSS120
Access barrier with a tempered glass wing that ensures secure physical blocking and fast passage, including for users with reduced mobility. The compact stainless steel design offers high robustness and durability, ensuring smooth and silent operation. Thanks to the 900 mm passage width, brushless motor and emergency modes with automatic opening in the event of power failure, it easily adapts to different application environments. An efficient, comfortable solution compatible with any access control system.
- Power Supply: AC 110/220 V / 50 W max.
- LED Indicator: On the top of the cover in circular mode
- Control Mode: Compatible with automatic access control systems
- Communications: RS232/RS485/TCP IP control module (optional)
- Emergency: Manual or automatic wing opening (optional)
- Power Failure: Possibility of manual opening in both directions
- Opening and Closing: +/- 5/6 seconds
- Passage Width: 900 (W) x 600 (D) mm (suitable for people with reduced mobility)
- Reliability: Brushless motor, 5,000,000 cycles
- Security: Configurable anti-tailgating with sound and blocking
- Wing Opening Angle: Bi-directional at 180º
- Operating Humidity: 5% - 80%
- Operating Temperature: -28 ºC ~ +60 ºC
- Application Environments: Indoor
- Certifications: CE, FC
- Tower/cover Material: SUS304 stainless steel
- Weight: 30Kg
- Passages/minute: 25 / minute
- Wing Material: Tempered glass, Stainless steel (optional)
- Dimensions: 1020x120x600 mm
- Infrared Sensor: 4 pairs
- Optional: RS232/RS485/TCP IP control module, RFID and/or fingerprint access control terminals; stainless steel wing. Full structure construction in SUS316 stainless steel (prepared for outdoor use).
