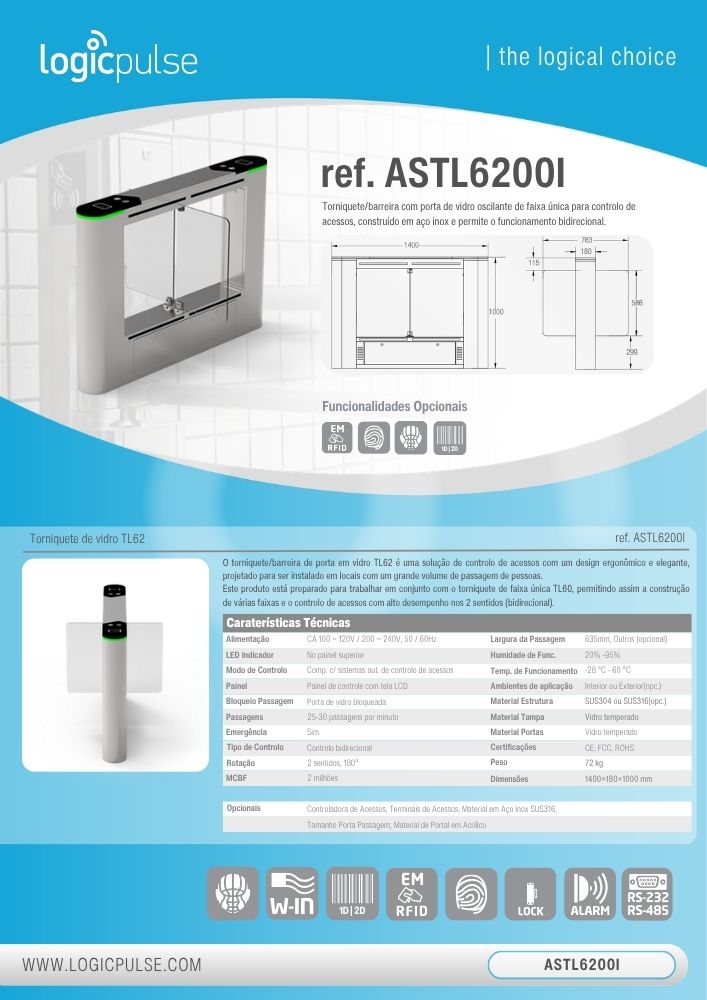

Glass turnstile TL62
Turnstile/barrier with single-lane swing glass door for access control, built in stainless steel and allows bidirectional operation.
RefASTL6200I
The TL62 glass door turnstile/barrier is an access control solution with an ergonomic and elegant design, designed to be installed in locations with a high volume of people traffic.
This product is prepared to work together with the TL60 single-lane turnstile, thus allowing the creation of multiple lanes and high-performance access control in both directions (bidirectional).
- Power Supply: AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
- LED Indicator: On the top panel
- Control Mode: Comp. w/ automated access control systems
- Panel: Control panel with LCD screen
- Passage Blocking: Locked glass door
- Passages: 25-30 passages per minute
- Emergency: Yes
- Control Type: Bidirectional control
- Rotation: 2 directions, 180°
- MCBF: 2 million
- Passage Width: 635mm, Others (optional)
- Operating Humidity: 20%~95%
- Operating Temperature: -28 °C - 60 °C
- Application Environments: Indoor or Outdoor (opt.)
- Structure Material: SUS304 or SUS316 (opt.)
- Cover Material: Tempered glass
- Door Material: Tempered glass
- Certifications: CE, FCC, ROHS
- Weight: 72 kg
- Dimensions: 1400×180×1000 mm
- Optional: Access Controller, Access Terminals, SUS316 Stainless Steel Material, Passage Door Size, Acrylic Portal Material
