Hardware
Access Accessories

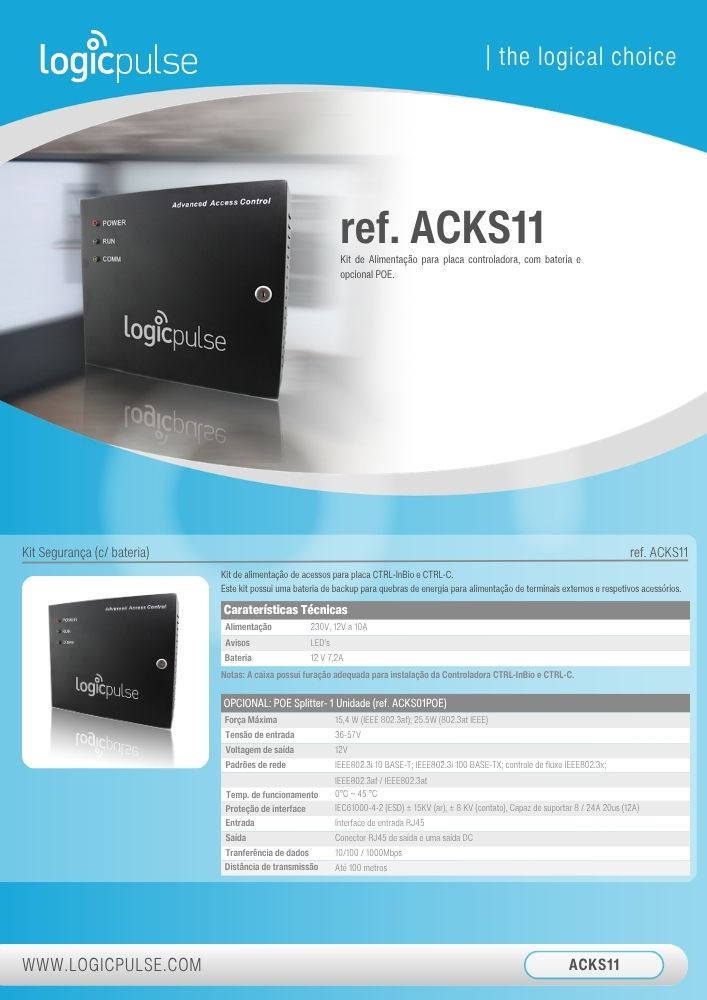

Security Kit (with battery)
Power supply kit for controller board, with battery and optional POE.
RefACKS11
Access power supply kit for CTRL-InBio and CTRL-C board.
This kit has a backup battery for power outages, used to power external terminals and their respective accessories.
- Power supply: 230V, 12V at 10A
- Warnings: LEDs
- Battery: 12 V 7.2A
- Notes: The box has suitable drilling for installing the CTRL-InBio and CTRL-C Controller.
- Maximum Power: 15.4 W (IEEE 802.3af); 25.5W (802.3at IEEE)
- Input voltage: 36-57V
- Output voltage: 12V
- Network standards: IEEE802.3i 10 BASE-T; IEEE802.3i 100 BASE-TX; IEEE802.3x flow control; IEEE802.3af / IEEE802.3at
- Operating temperature: 0°C ~ 45 °C
- Interface protection: IEC61000-4-2 (ESD) ± 15KV (air), ± 8 KV (contact), capable of supporting 8 / 24A 20us (12A)
- Input: RJ45 input interface
- Output: RJ45 output connector and one DC output
- Data transfer: 10/100 / 1000Mbps
- Transmission distance: Up to 100 metres
