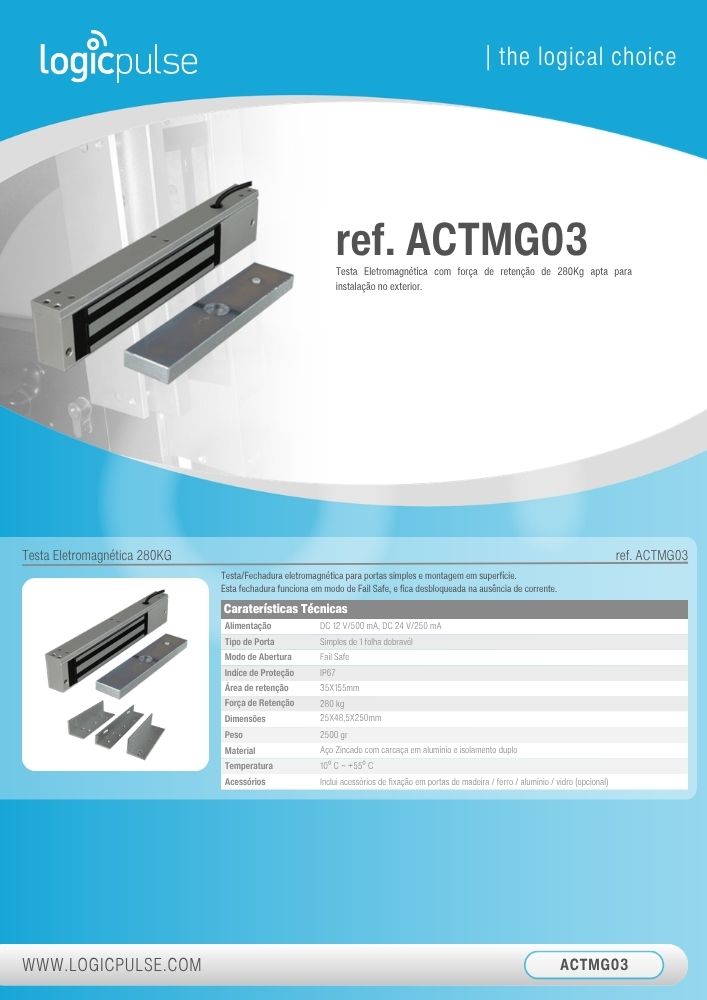

280KG Electromagnetic Lock
Electromagnetic lock with 280Kg holding force suitable for outdoor installation.
RefACTMG03
Electromagnetic lock for single doors and surface mounting.
This lock operates in Fail Safe mode and unlocks when there is no power.
- Power Supply: DC 12 V/500 mA, DC 24 V/250 mA
- Door Type: Single, 1 folding leaf
- Opening Mode: Fail Safe
- Protection Rating: IP67
- Retention Area: 35X155mm
- Holding Force: 280 kg
- Dimensions: 25X48.5X250mm
- Weight: 2500 gr
- Material: Zinc-plated steel with aluminium housing and double insulation
- Temperature: 10º C ~ +55º C
- Accessories: Includes fixing accessories for wooden / iron / aluminium / glass doors (optional)
