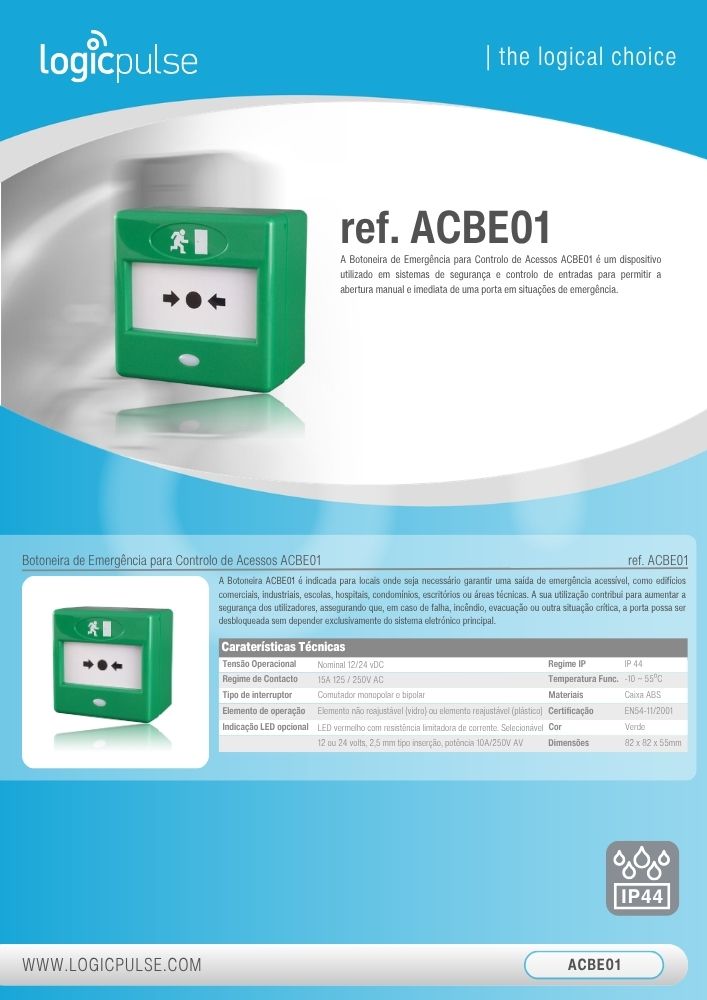

Emergency Push Button for Access Control ACBE01
The ACBE01 Emergency Push Button for Access Control is a device used in security and entrance control systems to allow the manual and immediate opening of a door in emergency situations.
RefACBE01
The ACBE01 Push Button is suitable for locations where it is necessary to ensure an accessible emergency exit, such as commercial and industrial buildings, schools, hospitals, condominiums, offices or technical areas. Its use helps increase user safety, ensuring that in the event of a failure, fire, evacuation or other critical situation, the door can be unlocked without relying exclusively on the main electronic system.
- Operating Voltage: Nominal 12/24 vDC
- Contact Rating: 15A 125 / 250V AC
- Switch Type: Single-pole and double-pole switch
- Operating Element: Non-resettable element (glass) or resettable element (plastic)
- Optional LED Indication: Red LED with current-limiting resistor. Selectable 12 or 24 volts, 2.5 mm insert type, power 10A/250V AV
- IP Rating: IP 44
- Operating Temperature: -10 ~ 55ºC
- Materials: ABS box
- Certification: EN54-11/2001
- Colour: Green
- Dimensions: 82 x 82 x 55mm
