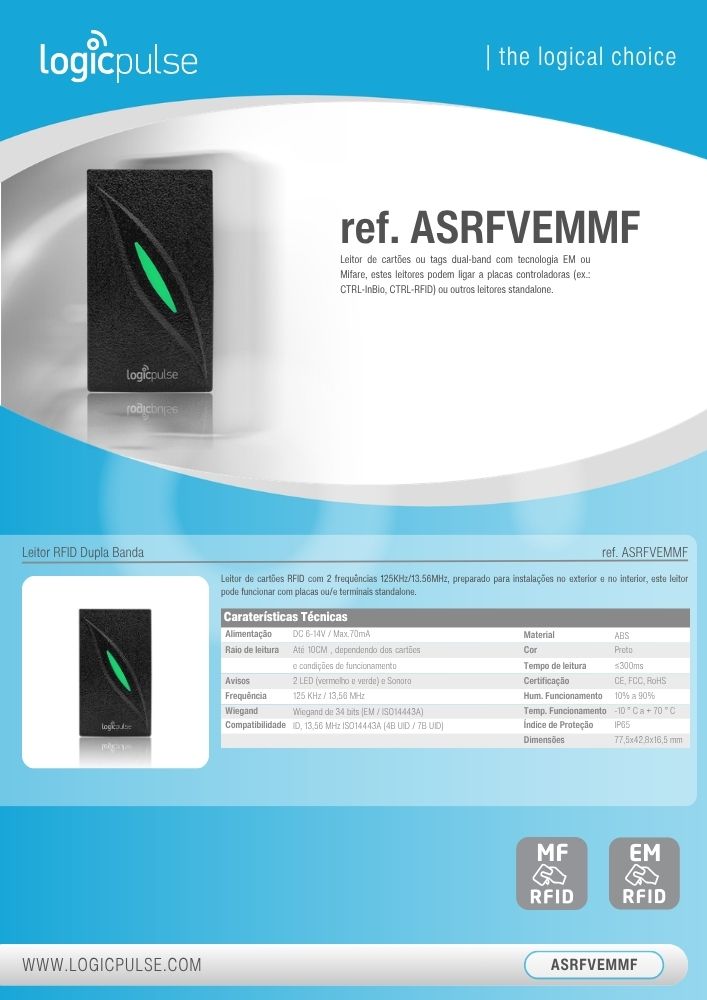

Dual Band RFID Reader
Card or dual-band tag reader with EM or Mifare technology. These readers can connect to controller boards (e.g.: CTRL-InBio, CTRL-RFID) or other standalone readers.
RefASRFVEMMF
RFID card reader with 2 frequencies, 125KHz/13.56MHz, prepared for outdoor and indoor installations. This reader can work with boards and/or standalone terminals.
- Power Supply: DC 6-14V / Max.70mA
- Reading Range: Up to 10CM, depending on the cards and operating conditions
- Alerts: 2 LEDs (red and green) and Buzzer
- Frequency: 125 KHz / 13.56 MHz
- Wiegand: 34-bit Wiegand (EM / ISO14443A)
- Compatibility: ID, 13.56 MHz ISO14443A (4B UID / 7B UID)
- Material: ABS
- Colour: Black
- Reading Time: ≤300ms
- Certification: CE, FCC, RoHS
- Operating Humidity: 10% to 90%
- Operating Temperature: -10 °C to + 70 °C
- Protection Rating: IP65
- Dimensions: 77.5x42.8x16.5 mm
