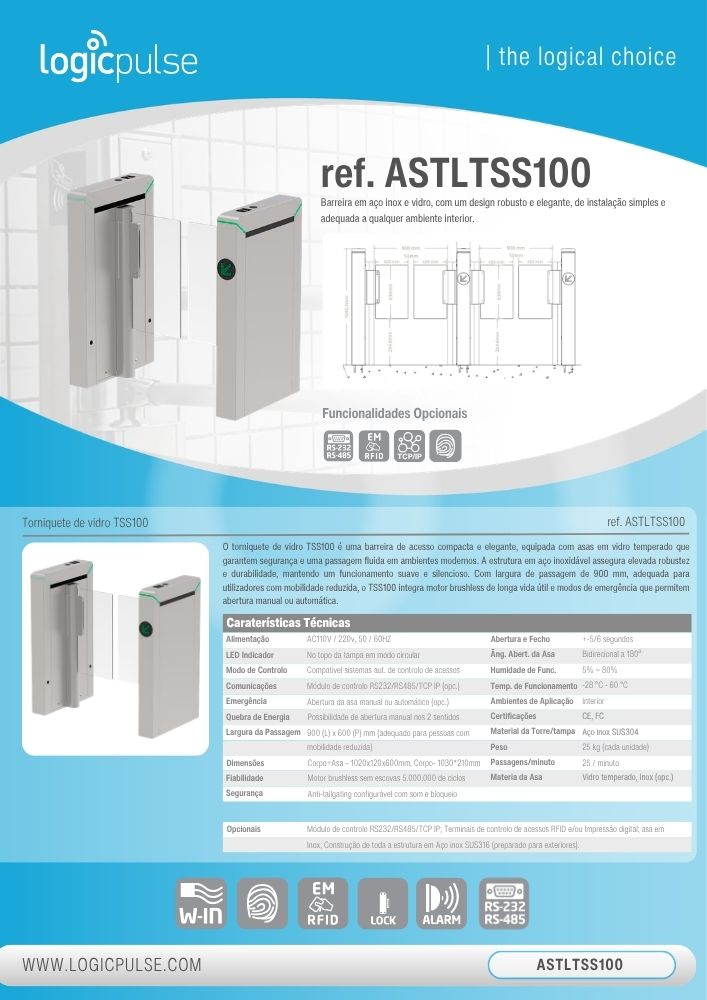

Glass turnstile TSS100
Stainless steel and glass barrier, with a robust and elegant design, simple installation and suitable for any indoor environment.
RefASTLTSS100
The TSS100 glass turnstile is a compact and elegant access barrier, equipped with tempered glass wings that ensure safety and smooth passage in modern environments. The stainless steel structure ensures high robustness and durability, while maintaining smooth and silent operation. With a passage width of 900 mm, suitable for users with reduced mobility, the TSS100 integrates a long-life brushless motor and emergency modes that allow manual or automatic opening.
- Power Supply: AC110V / 220V, 50 / 60Hz
- LED Indicator: On the top of the cover in circular mode
- Control Mode: Compatible with automatic access control systems
- Communications: RS232/RS485/TCP IP control module (optional)
- Emergency: Manual or automatic wing opening (optional)
- Power Failure: Possibility of manual opening in both directions
- Passage Width: 900 (W) x 600 (D) mm (suitable for people with reduced mobility)
- Dimensions: Body+Wing - 1020x120x600mm, Body - 1030*210mm
- Reliability: Brushless motor, 5,000,000 cycles
- Security: Configurable anti-tailgating with sound and blocking
- Opening and Closing: +/- 5/6 seconds
- Wing Opening Angle: Bi-directional at 180º
- Operating Humidity: 5% - 80%
- Operating Temperature: -28 ºC ~ 60 ºC
- Application Environments: Indoor
- Certifications: CE, FC
- Tower/cover Material: SUS304 stainless steel
- Weight: 25 kg (each unit)
- Passages/minute: 25 / minute
- Wing Material: Tempered glass, Stainless steel (optional)
- Optional: RS232/RS485/TCP IP control module, RFID and/or fingerprint access control terminals; stainless steel wing. Full structure construction in SUS316 stainless steel (prepared for outdoor use).
