Turnstile TS12
Compact double tripod turnstile in stainless steel with bi-directional operating mode.

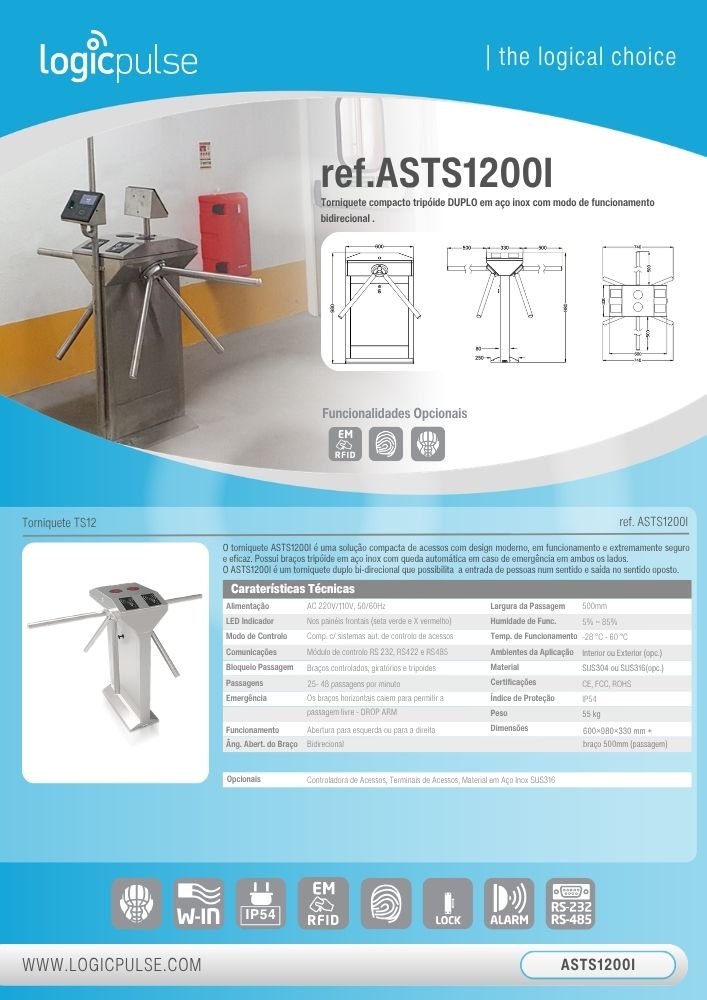

RefASTS1200I
The ASTS1200I turnstile is a compact access solution with a modern design and is extremely safe and effective in operation. It has stainless steel tripod arms with automatic drop in case of emergency on both sides.
The ASTS1200I is a double bi-directional turnstile that allows people to enter in one direction and exit in the opposite direction.
- Power Supply: AC 220V/110V, 50/60Hz
- LED Indicator: On the front panels (green arrow and red X)
- Control Mode: Compatible with automatic access control systems
- Communications: RS232, RS422 and RS485 control module
- Passage Blocking: Controlled, rotating and tripod arms
- Passages: 25 - 48 passages per minute
- Emergency: The horizontal arms drop to allow free passage - DROP ARM
- Operation: Opening to the left or to the right
- Arm Opening Angle: Bi-directional
- Passage Width: 500mm
- Operating Humidity: 5% ~ 85%
- Operating Temperature: -28 ºC ~ 60 ºC
- Application Environments: Indoor or Outdoor (optional)
- Material: SUS304 or SUS316(optional)
- Certifications: CE, FCC, RoHS
- Protection Rating: IP54
- Weight: 55 kg
- Dimensions: 600x980x330 mm + 500mm arm (passage)
- Optional: Access Controller, Access Terminals, SUS316 Stainless Steel Material
