Hardware
Turnstiles
Turnstile TS20
Simple long-passage tripod turnstile in stainless steel with bi-directional operating mode.

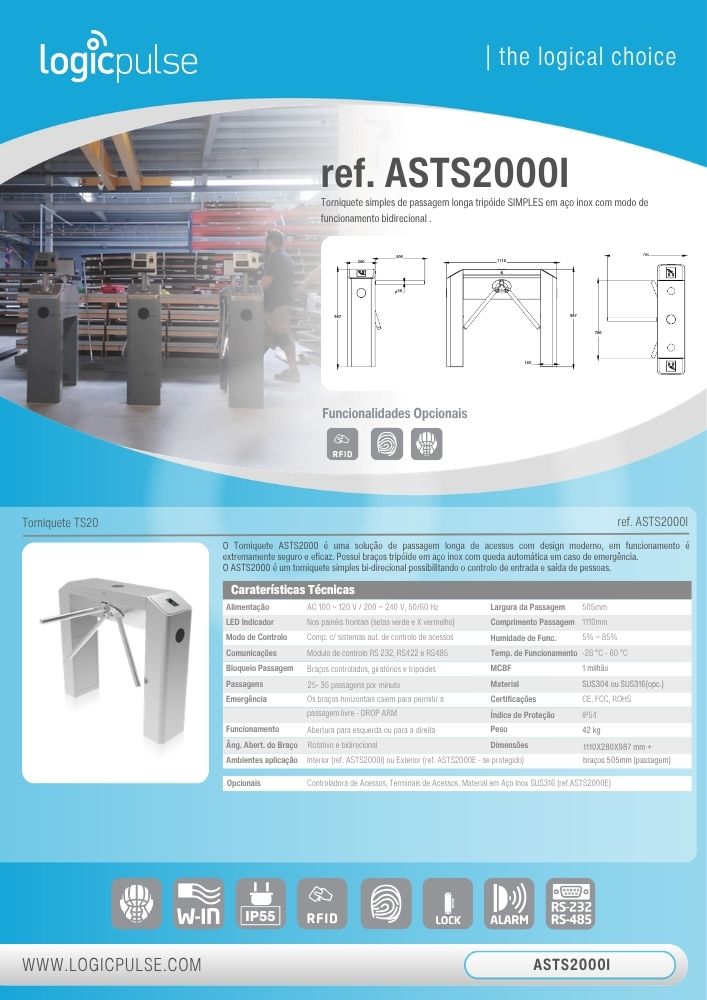

RefASTS2000I
The ASTS2000I turnstile is a long-passage access solution with a modern design and is extremely safe and effective in operation. It has stainless steel tripod arms with automatic drop in case of emergency.
The ASTS2000I is a simple bi-directional turnstile, enabling the control of people entering and exiting.
- Power Supply: AC 100 ~ 120 V / 200 ~ 240 V, 50/60 Hz
- LED Indicator: On the front panels (green arrows and red X)
- Control Mode: Compatible with automatic access control systems
- Communications: RS232, RS422 and RS485 control module
- Passage Blocking: Controlled, rotating and tripod arms
- Passages: 25-35 passages per minute
- Emergency: The horizontal arms drop to allow free passage - DROP ARM
- Operation: Opening to the left or to the right
- Arm Opening Angle: Rotating and bi-directional
- Application Environments: Indoor (ref. ASTS2000I) or Outdoor (ref. ASTS2000E - if protected)
- Passage Width: 600mm
- Passage Length: 1110mm
- Operating Humidity: 5% ~ 85%
- Operating Temperature: -28 ºC ~ 60 ºC
- MCBF: 1 million
- Material: SUS304 or SUS316(optional)
- Certifications: CE, FCC, RoHS
- Protection Rating: IP54
- Weight: 42 kg
- Dimensions: 1110x280x987 mm + 505mm arms (passage)
- Optional: Access Controller, Access Terminals, SUS316 Stainless Steel Material (ref.ASTS2000E)
