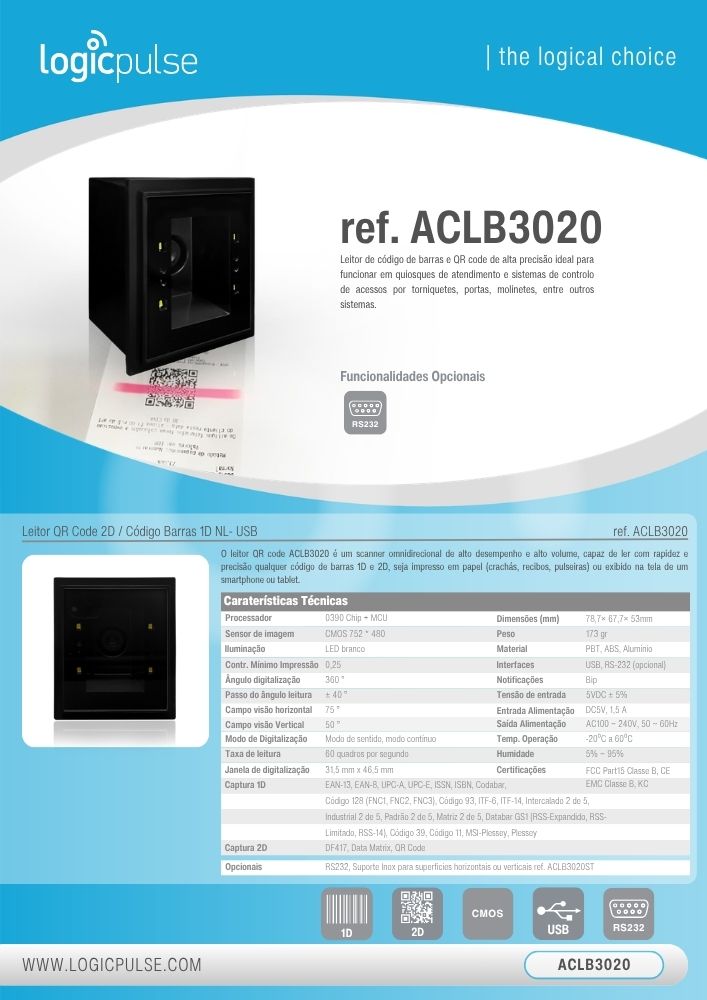

2D QR Code Reader / 1D Barcode NL- USB
High-precision barcode and QR code reader, ideal for use in service kiosks and access control systems for turnstiles, doors, revolving gates, among other systems.
RefACLB3020
The ACLB3020 QR code reader is a high-performance, high-volume omnidirectional scanner, capable of quickly and accurately reading any 1D and 2D barcode, whether printed on paper (badges, receipts, wristbands) or displayed on the screen of a smartphone or tablet.
- Processor: 0390 Chip + MCU
- Image sensor: CMOS 752 * 480
- Illumination: White LED
- Minimum Print Contrast: 0.25
- Scanning angle: 360°
- Reading angle pitch: ± 40°
- Horizontal field of view: 75°
- Vertical field of view: 50°
- Scanning Mode: Sense mode, continuous mode
- Reading rate: 60 frames per second
- Scanning window: 31.5 mm x 46.5 mm
- 1D Capture: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Databar GS1 (RSS-Expanded, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
- 2D Capture: DF417, Data Matrix, QR Code
- Dimensions (mm): 78.7 x 67.7 x 53mm
- Weight: 173 gr
- Material: PBT, ABS, Aluminium
- Interfaces: USB, RS-232 (optional)
- Notifications: Beep
- Input voltage: 5VDC ± 5%
- Power input: DC5V, 1.5 A
- Power output: AC100 ~ 240V, 50 ~ 60Hz
- Operating Temp.: -20°C to 60°C
- Humidity: 5% ~ 95%
- Certifications: FCC Part15 Class B, CE EMC Class B, KC
- Optional: RS232, Stainless steel support for horizontal or vertical surfaces ref. ACLB3020ST
