Double Turnstile LPT59DI
Double Turnstile ASTL59DI in stainless steel, with bi-directional operation. Robust and compact, it ensures efficient and reliable access control in high-traffic locations.

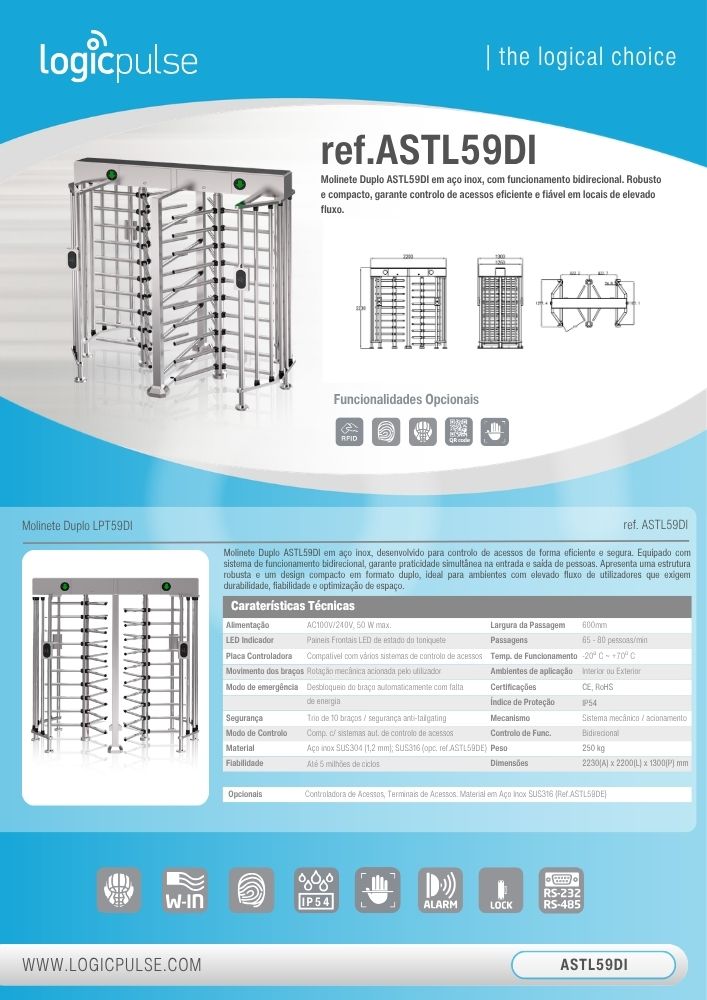

RefASTL59DI
Double Turnstile ASTL59DI in stainless steel, developed for efficient and secure access control. Equipped with a bi-directional operating system, it ensures simultaneous practicality when people enter and exit. It features a robust structure and a compact double-format design, ideal for environments with a high flow of users that require durability, reliability and space optimisation.
- Power Supply: AC100V/240V, 50 W max.
- LED Indicator: Front LED status panels of the turnstile
- Control Board: Compatible with various access control systems
- Arm movement: Mechanical rotation activated by the user
- Emergency mode: Arm automatically unlocks in case of power failure
- Security: Set of 10 arms / anti-tailgating security
- Control Mode: Compatible with automatic access control systems
- Material: SUS304 stainless steel (1.2 mm); SUS316 (optional ref.ASTL59DE)
- Reliability: Up to 5 million cycles
- Passage Width: 600mm
- Passages: 65 - 80 people/min
- Operating Temperature: -20°C ~ +70°C
- Application Environments: Indoor or Outdoor
- Certifications: CE, RoHS
- Protection Rating: IP54
- Mechanism: Mechanical system / actuation
- Operating Control: Bi-directional
- Weight: 250 kg
- Dimensions: 2230(H) x 2200(W) x 1300(D) mm
- Optional: Access Controller, Access Terminals, SUS316 Stainless Steel Material (Ref.ASTL59DE)
