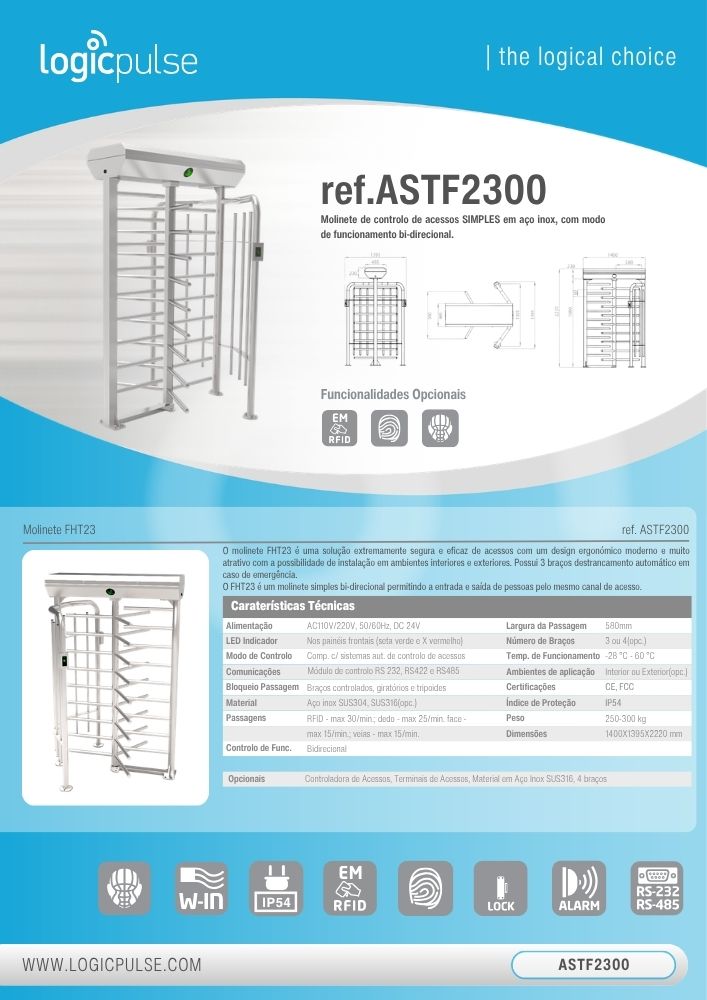

Turnstile FHT23
SIMPLE access control turnstile in stainless steel, with bi-directional operating mode.
RefASTF2300I
The FHT23 turnstile is an extremely safe and effective access control solution, with a modern and highly attractive ergonomic design and the possibility of installation in indoor and outdoor environments. It has 3 arms with automatic unlocking in case of emergency.
The FHT23 is a simple bi-directional turnstile, allowing people to enter and exit through the same access channel.
- Power Supply: AC110V/220V, 50/60Hz, DC 24V
- LED Indicator: On the front panels (green arrow and red X)
- Control Mode: Compatible with automatic access control systems
- Communications: RS232, RS422 and RS485 control module
- Passage Blocking: Controlled, rotating and tripod arms
- Material: SUS304 stainless steel, SUS316(optional)
- Passages: RFID - max 30/min; finger - max 25/min; face - max 15/min; veins - max 15/min.
- Operating Control: Bi-directional
- Passage Width: 580mm
- Number of Arms: 3 or 4(optional)
- Operating Temperature: -28°C ~ 60°C
- Application Environments: Indoor or Outdoor(optional)
- Certifications: CE, FCC
- Protection Rating: IP54
- Weight: 250-300 kg
- Dimensions: 1400X1395X2220 mm
- Optional: Access Controller, Access Terminals (ASTF2300E), SUS316 Stainless Steel Material, 4 arms
