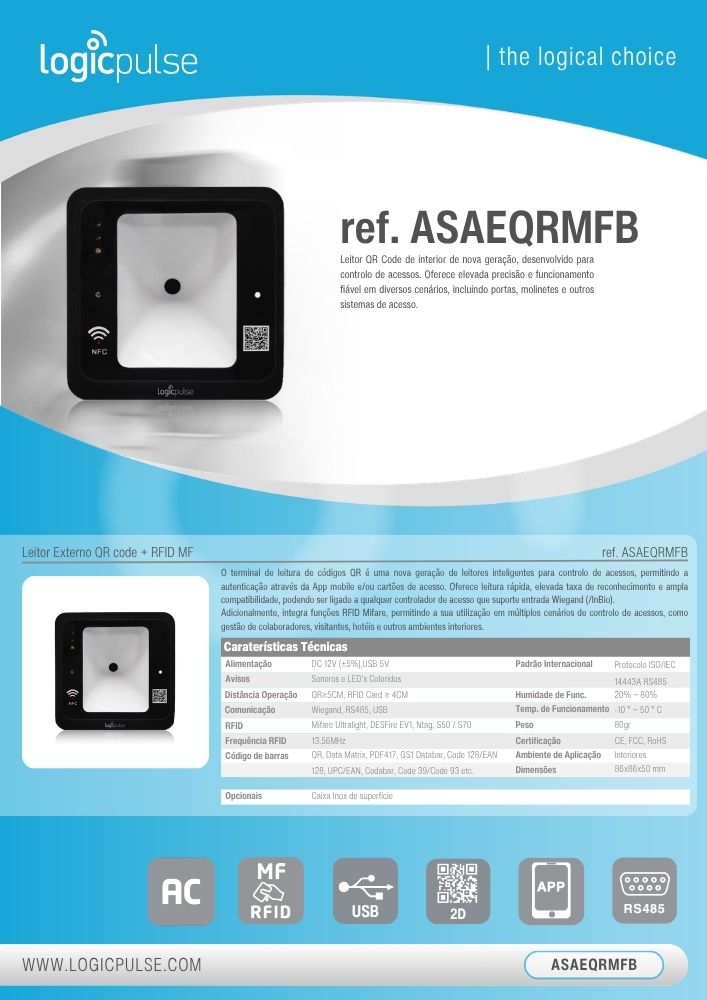

External QR Code Reader + RFID MF
Next-generation indoor QR Code reader, developed for access control. It offers high precision and reliable operation in various scenarios, including doors, turnstiles and other access systems.
RefASAEQRMFB
The QR code reading terminal is a new generation of intelligent readers for access control, allowing authentication through the mobile App and/or access cards. It offers fast reading, a high recognition rate and broad compatibility, and can be connected to any access controller that supports Wiegand input (/InBio).
Additionally, it integrates Mifare RFID functions, allowing its use in multiple access control scenarios, such as employee, visitor and hotel management, as well as other indoor environments.
- Power supply: DC 12V (±5%), USB 5V
- Alerts: Sound and Colored LEDs
- Operating Distance: QR≥5CM, RFID Card ≥ 4CM
- Communication: Wiegand, RS485, USB
- RFID: Mifare Ultralight, DESFire EV1, Ntag, S50 / S70
- RFID Frequency: 13.56MHz
- Barcode: QR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN 128, UPC/EAN, Codabar, Code 39/Code 93 etc.
- International Standard: ISO/IEC 14443A RS485 Protocol
- Operating Humidity: 20% ~ 80%
- Operating Temp.: -10° ~ 50 ° C
- Weight: 80gr
- Certification: CE, FCC, RoHS
- Application Environment: Indoor
- Dimensions: 86x86x50 mm
- Optional: Surface-mounted stainless steel box
