IP Thermal Camera 01
Dual IP thermal camera for body temperature measurement, with 40M infrared illumination. This camera allows the measurement of 1 person at a time.

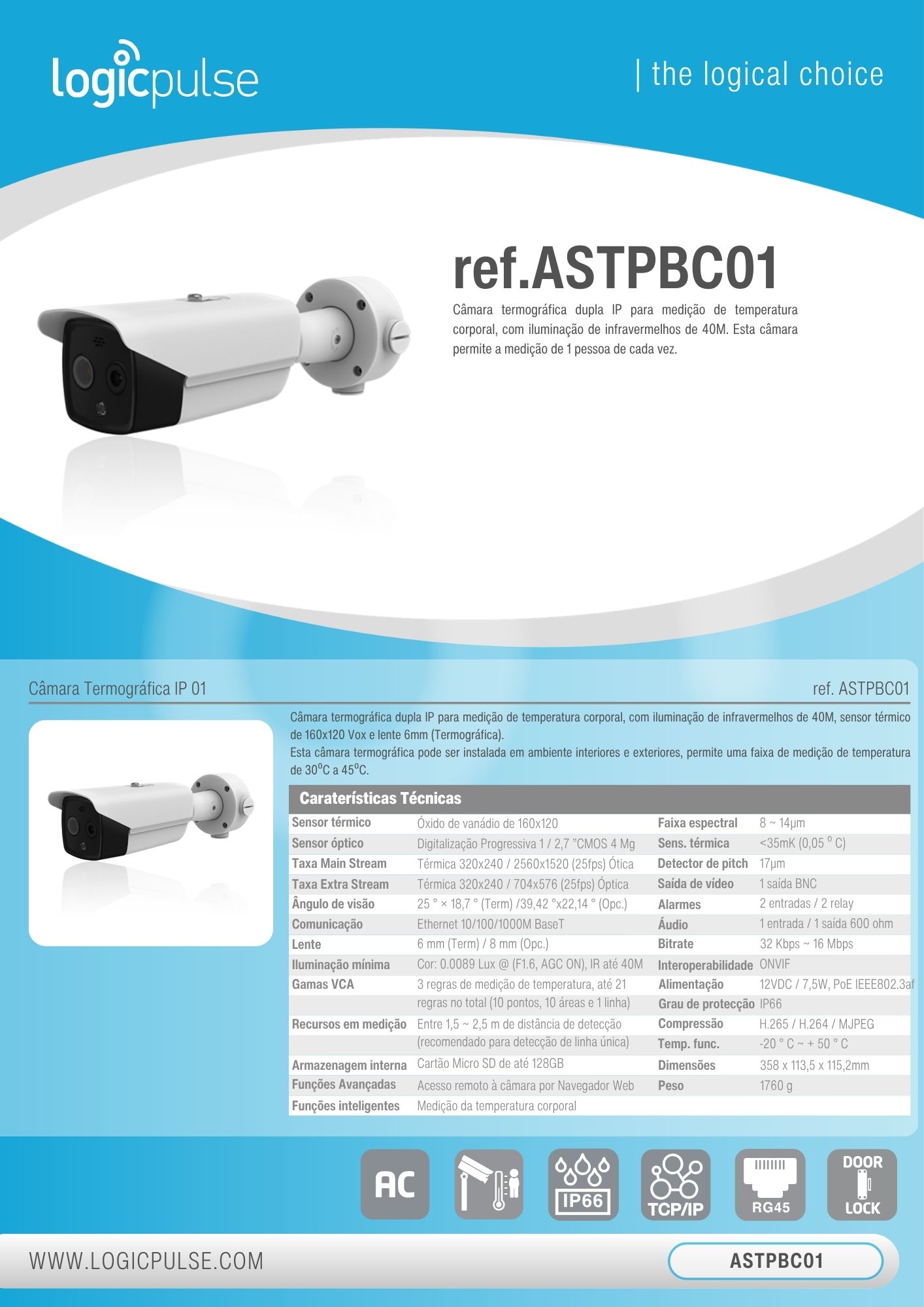

RefASTPBC01
Dual IP thermal camera for body temperature measurement, with 40M infrared illumination, 160x120 Vox thermal sensor and 6mm lens (Thermal). This thermal camera can be installed indoors and outdoors, and allows a temperature measurement range from 30°C to 45°C.
- Thermal sensor: 160x120 vanadium oxide
- Optical sensor: Progressive Scan 1 / 2.7 "CMOS 4 Mg
- Main Stream rate: Thermal 320x240 / 2560x1520 (25fps) Optical
- Extra Stream rate: Thermal 320x240 / 704x576 (25fps) Optical
- Viewing angle: 25 ° × 18.7 ° (Therm) /39.42 °x22.14 ° (Opt.)
- Communication: Ethernet 10/100/1000M BaseT
- Lens: 6 mm (Therm) / 8 mm (Opt.)
- Minimum illumination: Colour: 0.0089 Lux @ (F1.6, AGC ON), IR up to 40M
- VCA ranges: 3 temperature measurement rules, up to 21 rules in total (10 points, 10 areas and 1 line)
- Measurement resources: Between 1.5 ~ 2.5 m detection distance (recommended for single-line detection)
- Internal storage: Micro SD card up to 128GB
- Advanced functions: Remote access to the camera via Web Browser
- Smart functions: Body temperature measurement
- Spectral range: 8 ~ 14μm
- Thermal sensitivity: <35mK (0.05 ° C)
- Detector pitch: 17μm
- Video output: 1 BNC output
- Alarms: 2 inputs / 2 relays
- Audio: 1 input / 1 output 600 ohm
- Bitrate: 32 Kbps ~ 16 Mbps
- Interoperability: ONVIF
- Power supply: 12VDC / 7.5W, PoE IEEE802.3af
- Protection rating: IP66
- Compression: H.265 / H.264 / MJPEG
- Operating temperature: -20 ° C ~ + 50 ° C
- Dimensions: 358 x 113.5 x 115.2mm
- Weight: 1760 g
