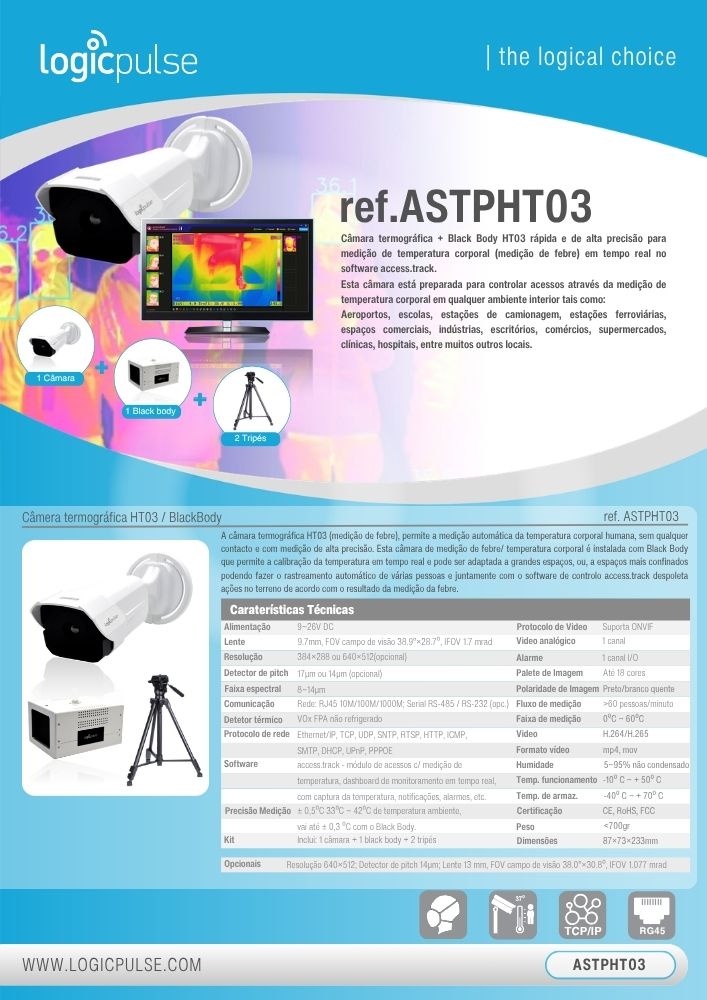

Thermographic camera HT03 / BlackBody
Thermographic camera + Black Body HT03, fast and highly accurate for body temperature measurement (fever measurement) in real time in the access.track software. This camera is prepared to control access through body temperature measurement in any indoor environment such as: Airports, schools, bus stations, railway stations, commercial spaces, industries, offices, shops, supermarkets, clinics, hospitals, among many other locations.
RefASTPHT03
The HT03 thermographic camera (fever measurement) allows automatic human body temperature measurement, without any contact and with high-precision measurement. This fever/body temperature measurement camera is installed with a Black Body, which allows real-time temperature calibration and can be adapted to large spaces or more confined spaces, allowing automatic tracking of several people and, together with the access.track control software, triggers actions on site according to the result of the fever measurement.
- Power supply: 9–26V DC
- Lens: 9.7mm, FOV field of view 38.9°×28.7°, IFOV 1.7 mrad
- Resolution: 384×288 or 640×512(optional)
- Detector pitch: 17μm or 14μm (optional)
- Spectral range: 8–14μm
- Communication: Network: RJ45 10M/100M/1000M; Serial RS-485 / RS-232 (opt.)
- Thermal detector: Uncooled VOx FPA
- Network protocol: Ethernet/IP, TCP, UDP, SMTP, RTSP, HTTP, ICMP, SMTP, DHCP, UPnP, PPPOE
- Software: access.track - access module with temperature measurement; real-time monitoring dashboard, with temperature capture, notifications, alarms, etc.
- Measurement accuracy: ± 0.5°C 33°C – 42°C ambient temperature, reaches up to ± 0.3°C with the Black Body.
- Kit: Includes 1 camera + 1 black body + 2 tripods
- Video protocol: Supports ONVIF
- Analogue video: 1 channel
- Alarm: 1 I/O channel
- Image palette: Up to 18 colours
- Image polarity: Black/white hot
- Measurement flow: >60 people/minute
- Measurement range: 0°C – 60°C
- Video: H.264/H.265
- Video format: mp4, mov
- Humidity: 5–95% non-condensing
- Operating temp.: -10°C – + 50°C
- Storage temp.: -40°C – + 70°C
- Certification: CE, RoHS, FCC
- Weight: <700gr
- Dimensions: 87×73×233mm
- Optional: Resolution 640×512; Detector pitch 14μm; Lens 13 mm, FOV field of view 58.0°×30.6°, IFOV 1.077 mrad
