Hardware
License Plate Recognition

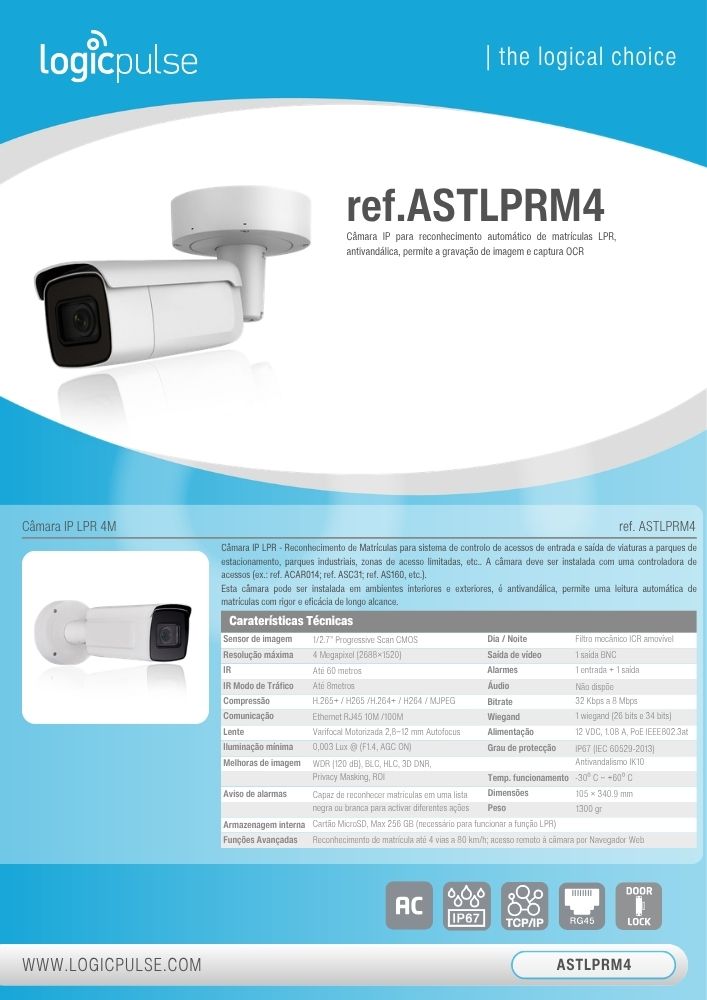

IP LPR 4M Camera
IP camera for automatic LPR licence plate recognition, vandal-proof, allows image recording and OCR capture.
RefASTLPRM4
IP LPR Camera - Licence Plate Recognition for access control systems for vehicle entry and exit in car parks, industrial parks, restricted access areas, etc. The camera must be installed with an access controller (e.g.: ref. ACAR014; ref. ASC31; ref. AS160, etc.).
This camera can be installed in indoor and outdoor environments, is vandal-proof, and allows accurate and effective long-range automatic licence plate reading.
- Image sensor: 1/2.7" Progressive Scan CMOS
- Maximum resolution: 4 Megapixel (2688×1520)
- IR: Up to 60 metres
- IR Traffic Mode: Up to 8 metres
- Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Communication: Ethernet RJ45 10M/100M
- Lens: Motorised Varifocal 2.8–12 mm Autofocus
- Minimum illumination: 0.003 Lux @ (F1.4, AGC ON)
- Image enhancements: WDR (120 dB), BLC, HLC, 3D DNR, Privacy Masking, ROI
- Alarm notification: Capable of recognising licence plates on a blacklist or whitelist to trigger different actions
- Internal storage: MicroSD card, Max 256 GB (required for the LPR function to work)
- Advanced functions: Licence plate recognition up to 4 lanes at 80 km/h; remote access to the camera via Web Browser
- Day / Night: Removable ICR mechanical filter
- Video output: 1 BNC output
- Alarms: 1 input + 1 output
- Audio: Not available
- Bitrate: 32 Kbps to 8 Mbps
- Wiegand: 1 Wiegand (26 bits and 34 bits)
- Power supply: 12 VDC, 1.0A, PoE IEEE802.3at
- Protection rating: IP67 (IEC 60529-2013) IK10 vandal resistance
- Operating temp.: -30°C ~ +60°C
- Dimensions: 105 × 340.9 mm
- Weight: 1300 gr
