Hardware
License Plate Recognition

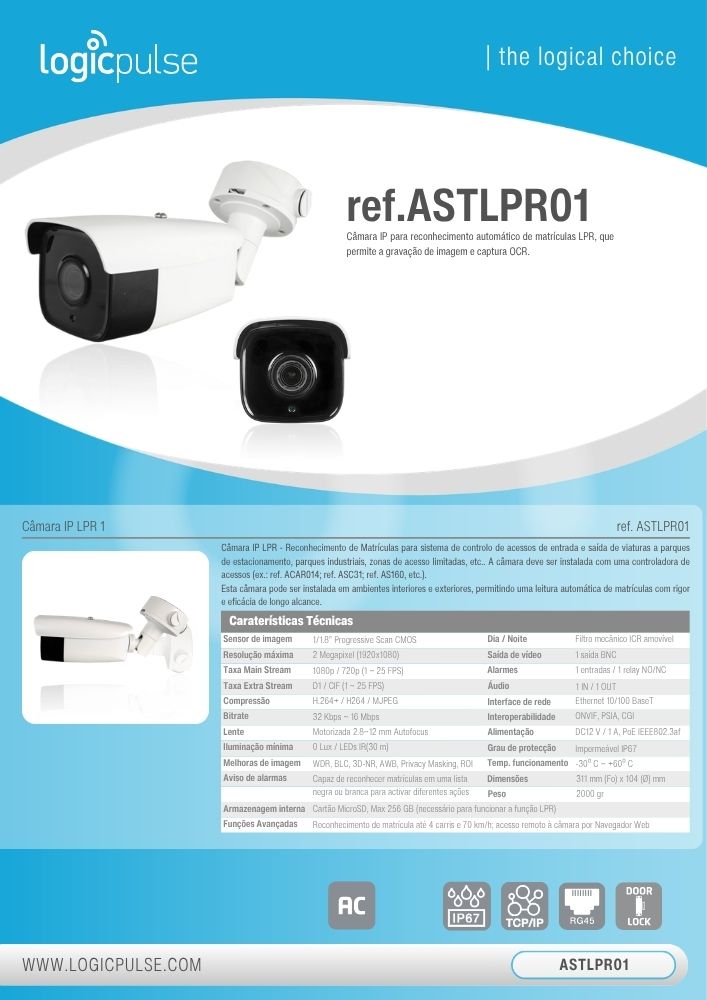

IP LPR 1 Camera
IP camera for automatic LPR licence plate recognition, allowing image recording and OCR capture.
RefASTLPR01
IP LPR Camera - Licence Plate Recognition for access control systems for vehicle entry and exit in car parks, industrial parks, restricted access areas, etc. The camera must be installed with an access controller (e.g.: ref. ACAR014; ref. ASC31; ref. AS160, etc.).
This camera can be installed in indoor and outdoor environments, allowing accurate and effective long-range automatic licence plate reading.
- Image sensor: 1/1.8" Progressive Scan CMOS
- Maximum resolution: 2 Megapixel (1920x1080)
- Main Stream Rate: 1080p / 720p (1 – 25 FPS)
- Extra Stream Rate: D1 / CIF (1 – 25 FPS)
- Compression: H.264+ / H.264 / MJPEG
- Bitrate: 32 Kbps – 16 Mbps
- Lens: Motorised 2.8–12 mm Autofocus
- Minimum illumination: 0 Lux / LEDs (IR 30 m)
- Image enhancements: WDR, BLC, 3D-NR, AWB, Privacy Masking, ROI
- Alarm notification: Capable of recognising licence plates on a blacklist or whitelist to trigger different actions
- Internal storage: MicroSD card, Max 256 GB (required for the LPR function to work)
- Advanced functions: Licence plate recognition up to 4 lanes and 70 km/h; remote access to the camera via Web Browser
- Day / Night: Removable ICR mechanical filter
- Video output: 1 BNC output
- Alarms: 1 input / 1 NO/NC relay
- Audio: 1 IN / 1 OUT
- Network interface: Ethernet 10/100 BaseT
- Interoperability: ONVIF, PSIA, CGI
- Power supply: DC12 V / 1 A, PoE IEEE802.3af
- Protection rating: Waterproof IP67
- Operating temp.: -30°C ~ +60°C
- Dimensions: 311 mm (Fo) x 104 (Ø) mm
- Weight: 2000 gr
