Exit/Infrared Button
Stainless steel button activated by hand proximity.

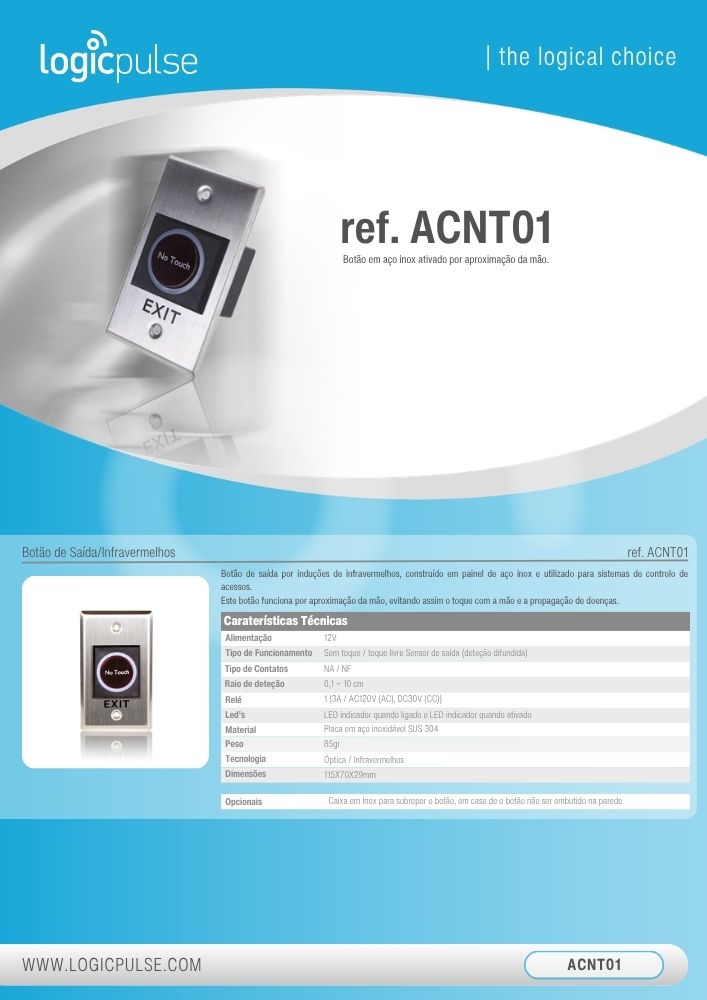

RefACNT01
Infrared induction exit button, built with a stainless steel panel and used for access control systems.
This button works by hand proximity, avoiding hand contact and therefore the spread of diseases.
- Power Supply: 12V
- Operating Type: Touchless / free touch Exit sensor (diffuse detection)
- Contact Type: NO / NC
- Detection Range: 0.1 ~ 10 cm
- Relay: 1 (3A / AC120V (AC), DC30V (DC))
- LEDs: LED indicator when powered on and LED indicator when activated
- Material: SUS 304 stainless steel plate
- Weight: 85g
- Technology: Optical / Infrared
- Dimensions: 115X70X29mm
- Optional: Stainless steel surface-mount box for the button, in case the button is not embedded in the wall
