H RFID Access Reader - EM

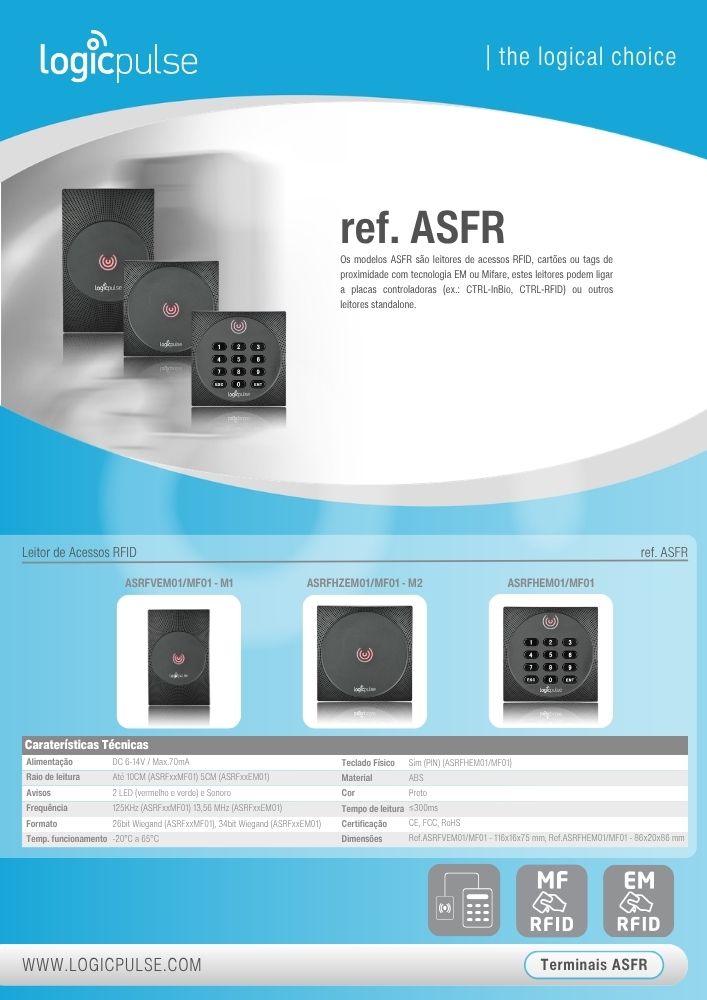

ASFR models are RFID access readers for proximity cards or tags with EM or Mifare technology. These readers can be connected to controller boards (e.g.: CTRL-InBio, CTRL-RFID) or other standalone readers.
RefASRFHEM01
ASFR models are RFID access readers for proximity cards or tags with EM or Mifare technology. These readers can be connected to controller boards (e.g.: CTRL-InBio, CTRL-RFID) or other standalone readers.
- Power supply: DC 6-14V / Max.70mA
- Reading range: Up to 10CM (ASRFxxMF01) 5CM (ASRFxxEM01)
- Indicators: 2 LED (red and green) and Buzzer
- Frequency: 125KHz (ASRFxxMF01) 13.56 MHz (ASRFxxEM01)
- Format: 26bit Wiegand (ASRFxxMF01), 34bit Wiegand (ASRFxxEM01)
- Operating temperature: -20°C to 65°C
- Physical keypad: Yes (PIN) (ASRFHEM01/MF01)
- Material: ABS
- Colour: Black
- Reading time: ≤300ms
- Certification: CE, FCC, RoHS
- Dimensions: Ref.ASRFVEM01/MF01 - 116x16x75 mm, Ref.ASRFHEM01/MF01 - 86x20x86 mm
